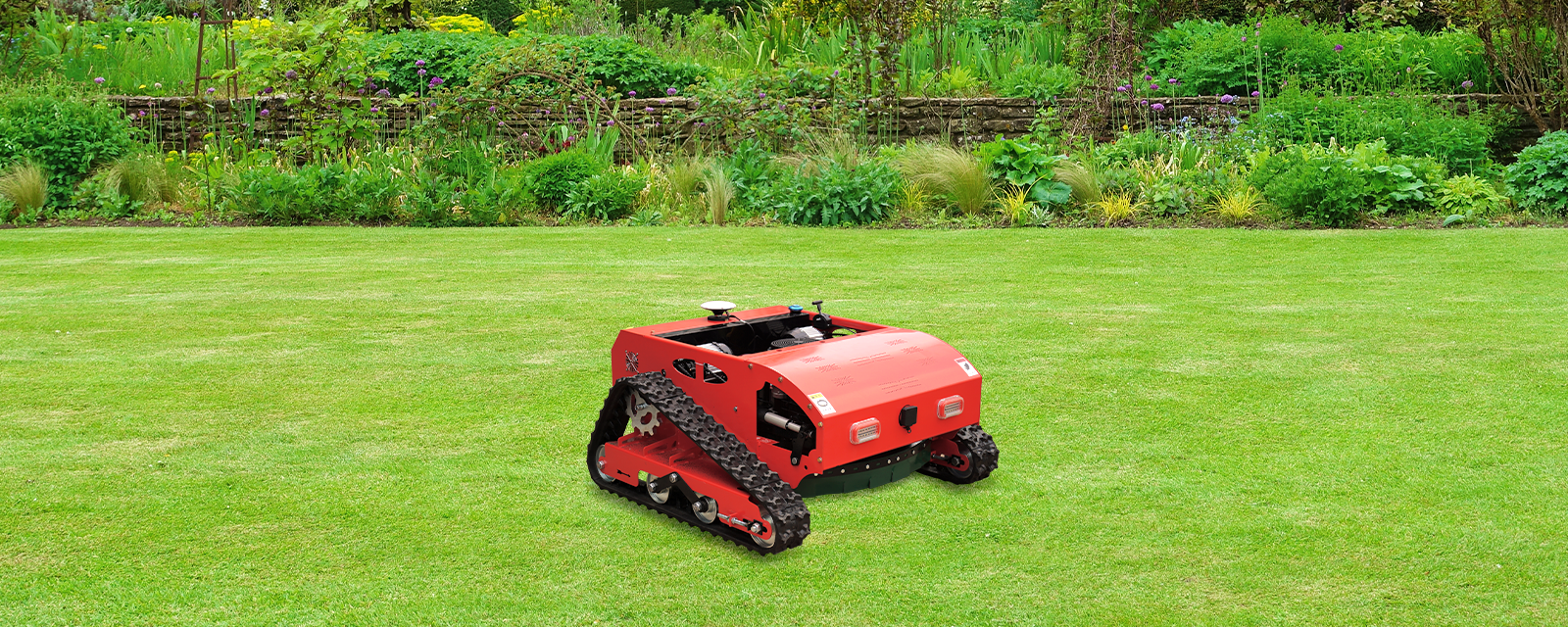

80-1A Intelligent Lawn Mower

The 80-1A intelligent lawn mower robot utilizes a hybrid electric powertrain, integrating high-precision GNSS navigation and intelligent path planning technology to achieve ±2.5cm autonomous control. It supports flexible dual-mode switching (autonomous/manual), remote upgrades, and autonomous charging, enabling continuous operation day and night. Its compact tracked structure enables zero-turn maneuverability and stable operation in a variety of complex terrains, including lawns, hills, terraced fields, photovoltaic areas, and 60° slopes. This significantly improves efficiency and reduces labor reliance, making it an ideal intelligent device for landscaping, forestry management, and slope cultivation.

Terrain Adaptation

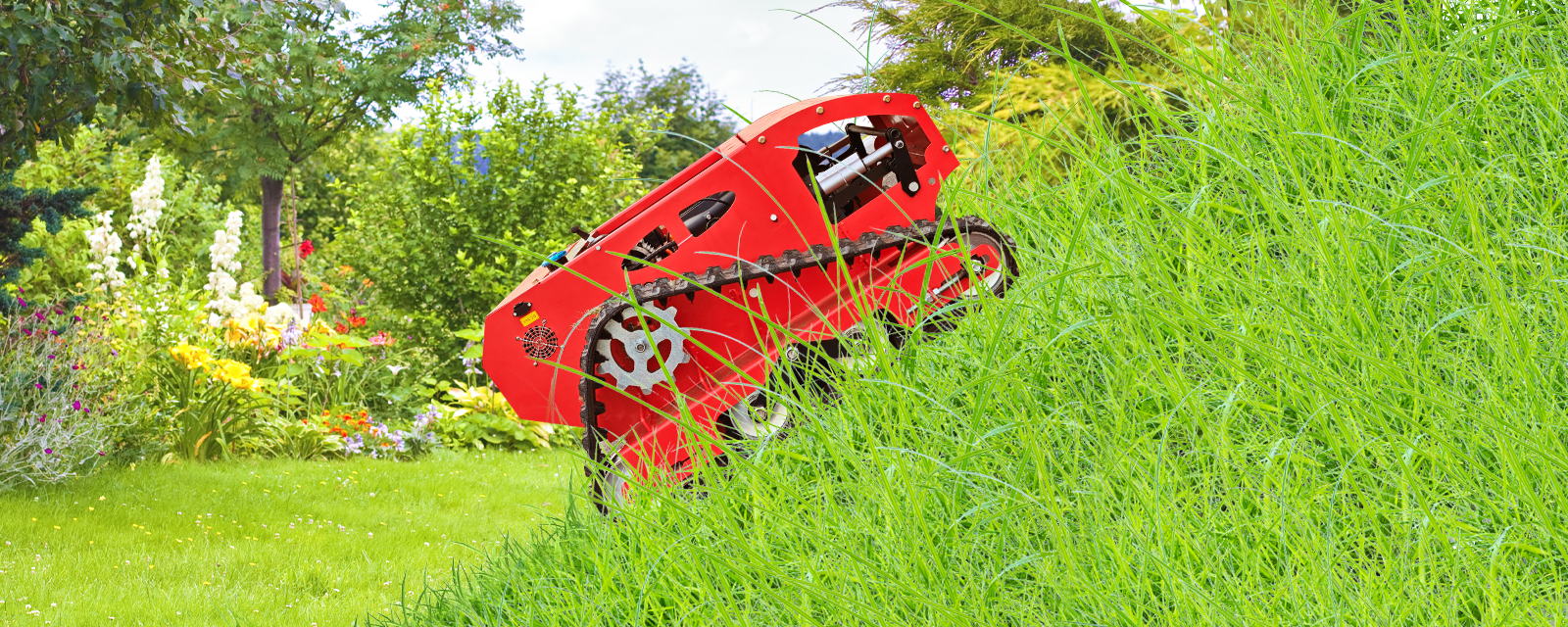

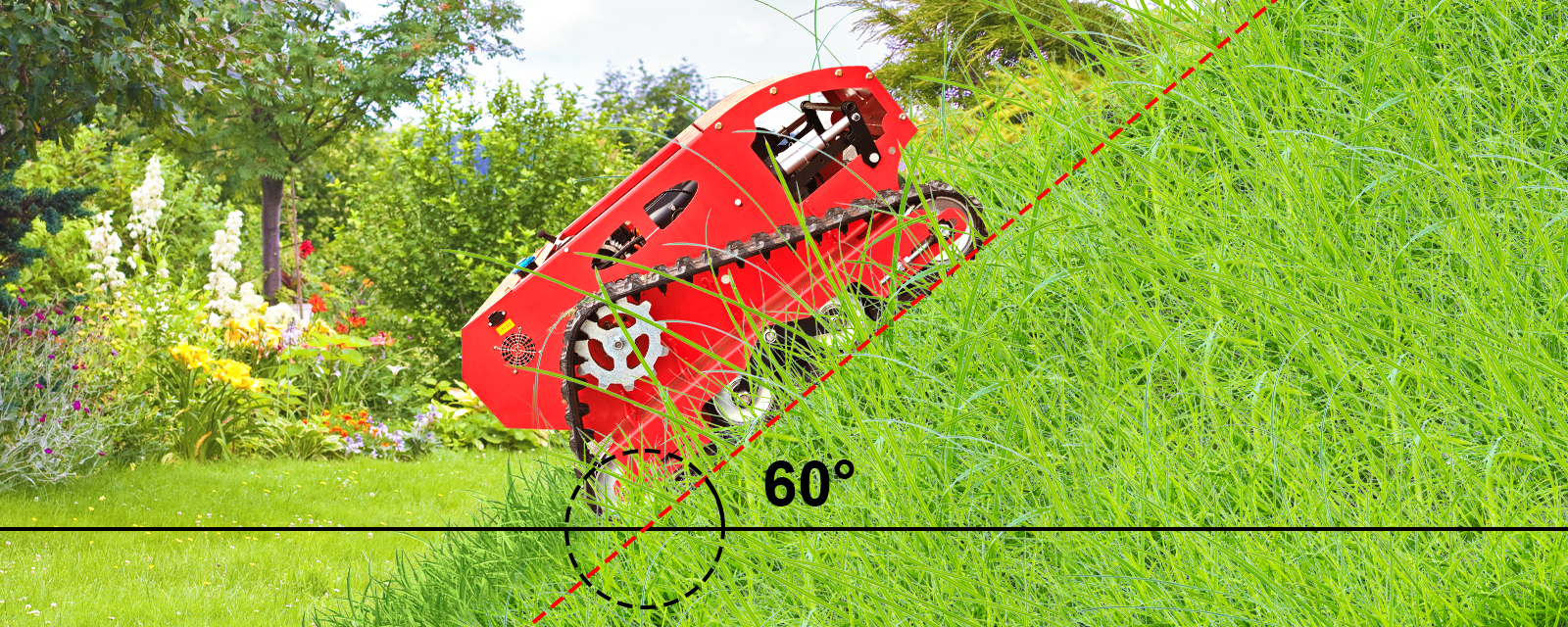

Extreme Slope Capability: 60°

Remote Control

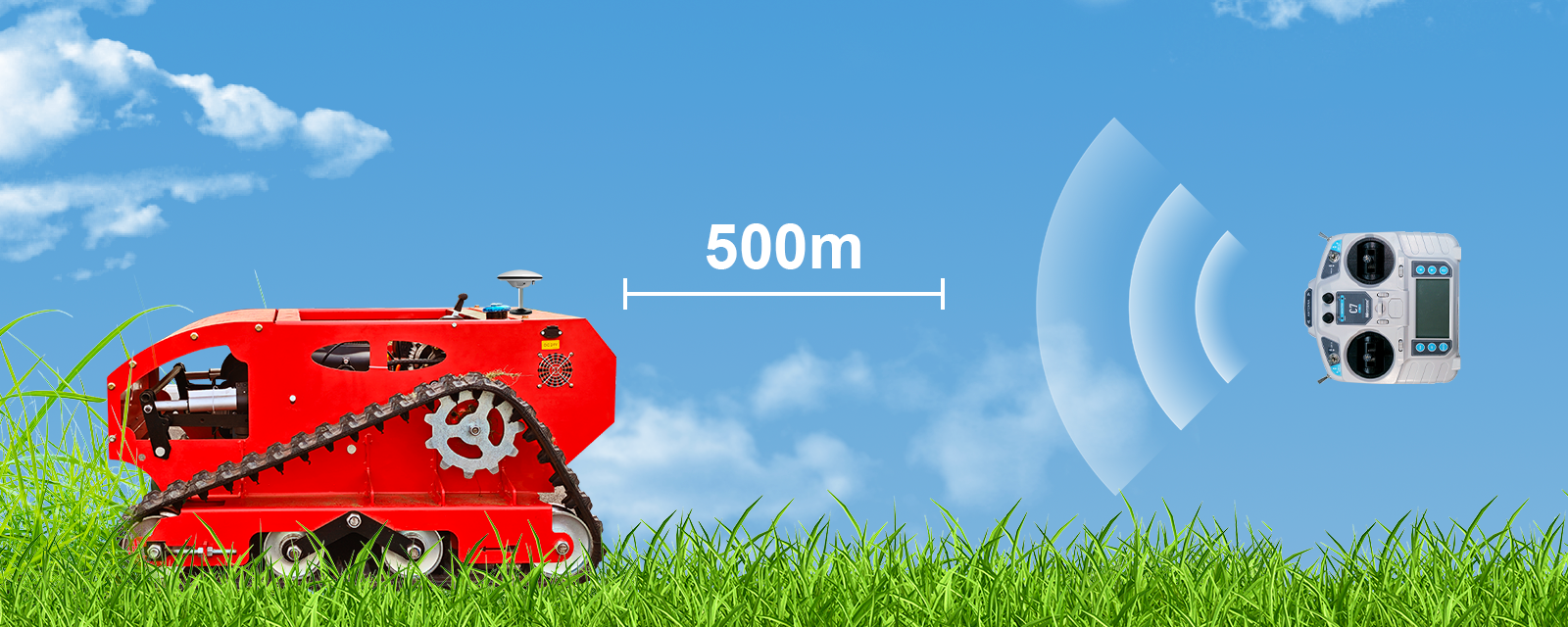

Effective remote control maximum radius: 500m

Optional

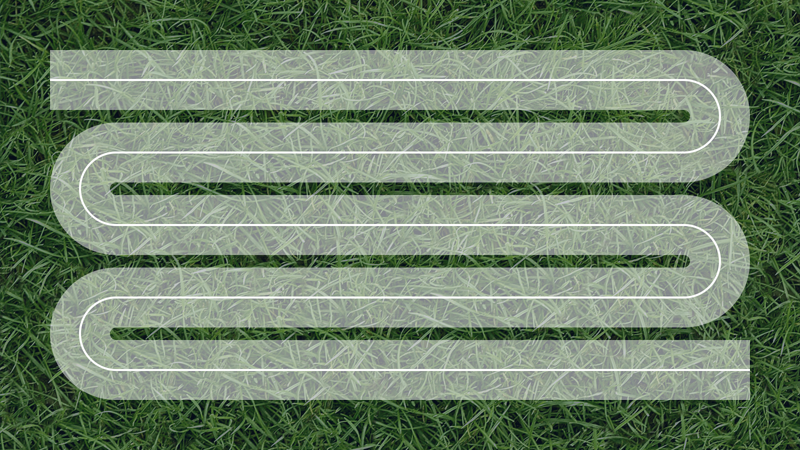

Auto Path Planning

Dual Mode (Auto/Manual)

Web Control

High Accuracy RTK

Remote Upgrade

Path Memory

Application

Orchard

Garden

Farm

Lawn

Technical Parameters

Control Tablet

Engine Model

608 CC

Packaging Dimensions

1170 mm * 1250 mm * 760 mm

Machine Dimensions

1110 mm * 1200 mm * 620 mm

Power Supply Voltage

24 V

Climbing Gradient

60 °

Power Output

3 kW

Travel Speed

0 ~ 4 km/h

Engine Type

22 HP Four-Stroke

Smart GNSS Receiver

Starting Mode

Electric Start

Mowing Width

800 mm

Fuel Type

92# Gasoline

Cutter Height

20 ~ 200 mm

Travel Mode

Self-propelled with Electric Tracks

Machine Weight

280 kg (330 kg Including Packaging)

Charging Mode

Engine Self-Charging System
