M30 GNSS Network Reference Station Receiver
M30 is a multi-functional GNSS network reference station receiver, with built-in high-precision board, 4G network module, standard Ethernet communication interface , etc., to realize the synchronous transmission of wired Internet and 4G wireless network , greatly increasing the network transmission of network reference station stability.
M30 network reference station receiver is mainly used in various network base stations, CORS base stations, monitoring systems, etc., and can be used in precision agriculture, surveying and mapping, intelligent transportation, unmanned aerial vehicles, construction machinery and other industries.
Standard Ethernet communication interface, convenient for high-speed network transmission of data
Built-in GNSS All constellations high precision board
Simultaneous transmission of wired Internet and 4G wireless network stably and efficiently
Remote management, remote setting, remote upgrade
It can be connected to a high-power radio, and can also be used as a rover station
Easy to set up, can automatically obtain network IP
Standard Ethernet communication interface, convenient for high-speed network transmission of data.
Simultaneous transmission of wired Internet and 4G wireless network stably and efficiently
Built-in GNSS All constellations high precision board
Application

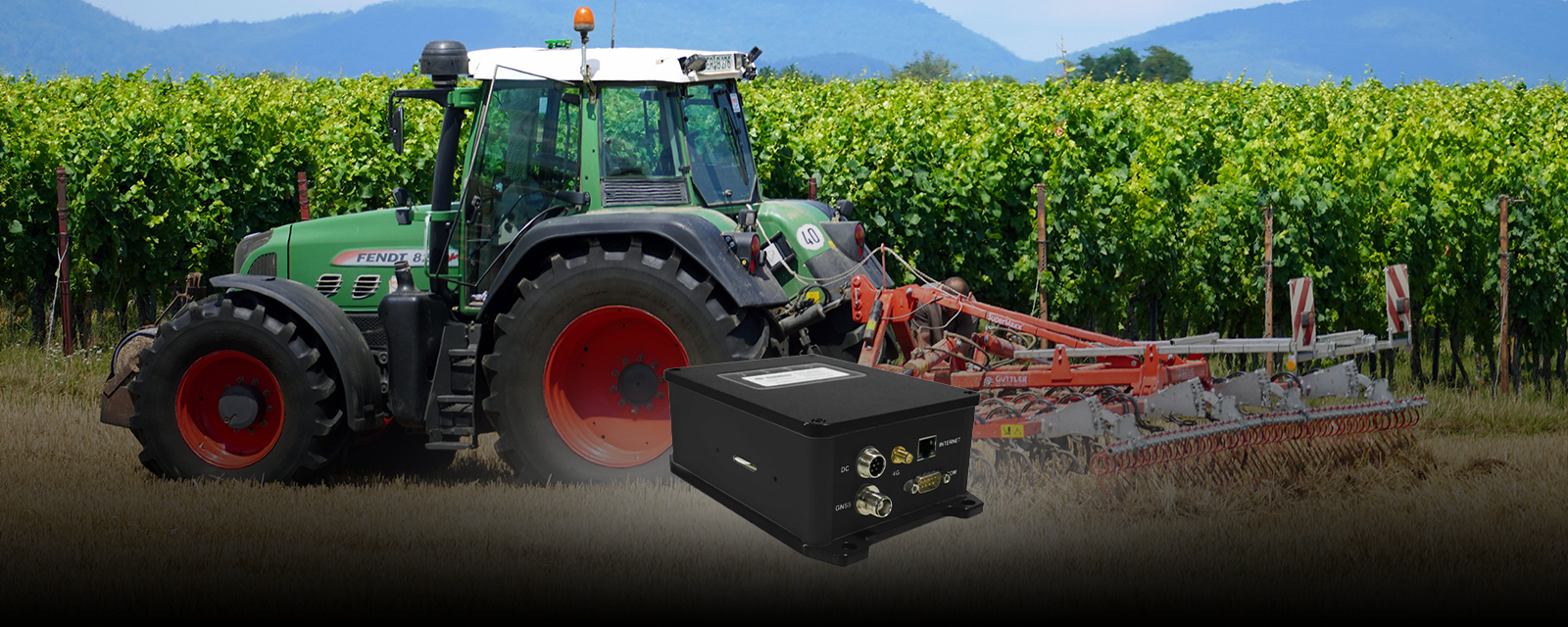

Precision Agriculture

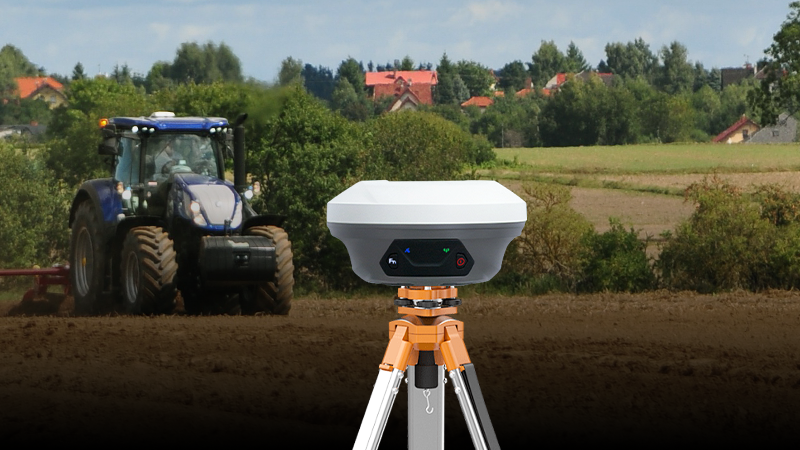

Base Station
Technical Parameters
Parametric Interface
GNSS antenna interfaec
TNC connector * 1
Data interface
RS232-DB9 male * 1
4G antenna interface
SMA interface * 1
Power interface
7 core aerial plug * 4
Network Interface
Standard Ethernet port * 1
Signal tracking
Cold start time
60 s
RTK initialization time
10 s
Initialize reliability
99.90 %
Constellation
GPS : L1/L2 ; GLONASS : L1/L2 ; Galileo : E1/E5b ; QZSS : L1/L2
Data transmission
Data Format
NMEA - 0183
Baud rate
9600 / 38400 / 115200
Refresh rate
1 ~ 10 Hz optional
Network protocol
NTRIP ; TCP
Differential format
RTCM 3.2
Parametric properties
Size
180 mm * 120 mm * 65 mm
Weight
1.1 kg
Operating temperature
- 20 ℃ ~ 60 °C
Indicator light
4
Accuracy Index
Horizontal (RMS)
Vertical (RMS)
Single point positioning
L1 / L2
2.5 m
DGPS Accuracy
L1 / L2
0.8 m
RTK
E1 / E5b
1.5 cm + 1 ppm
