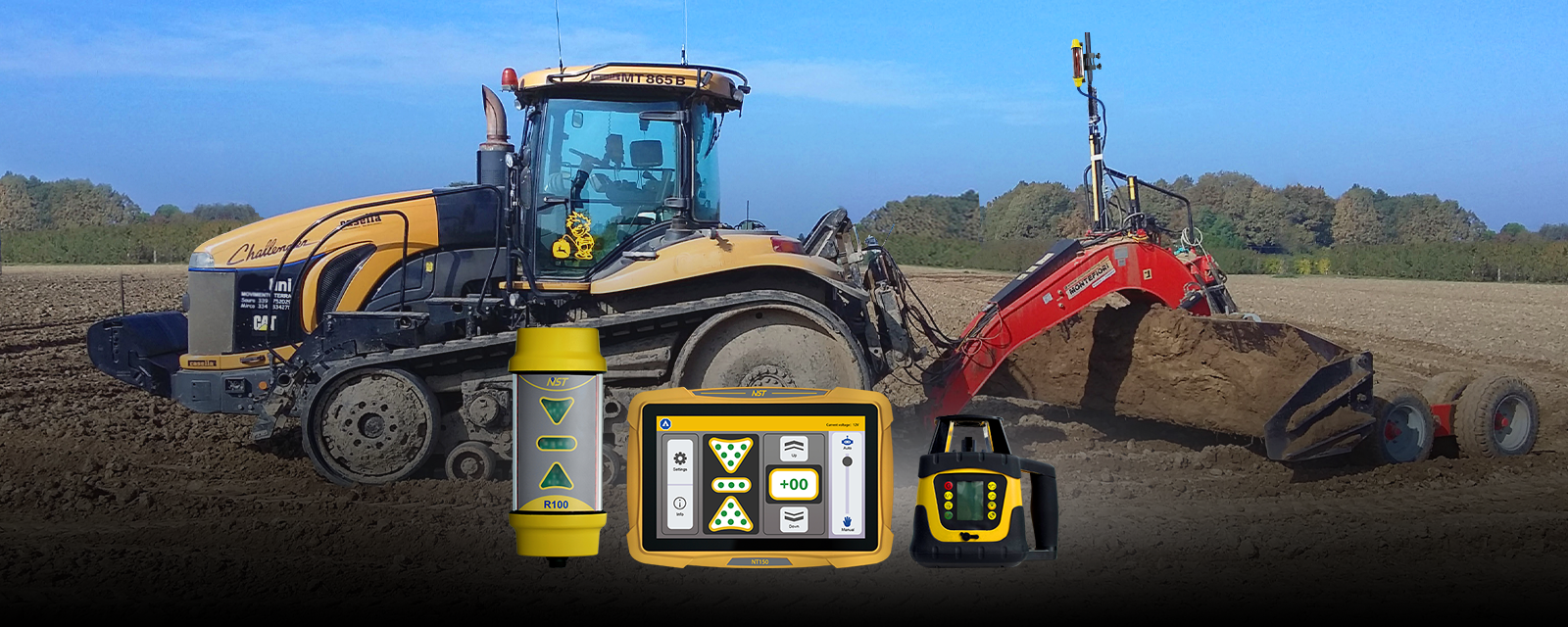

N100S Laser Land Leveling System (Support Dual Slope Setting)
The NST® N100 ™ Agricultural Laser Leveling System combines advanced laser technology with automated controls to deliver precise and efficient field leveling. Designed to boost yields, save water, and protect your soil, the N100 ™ ensures consistent performance across all terrains. Its user-friendly interface and durable design make it ideal for farms of all sizes.
LCD Display Screen
Horizontal Leveling Sloping Leveling
NI-MH Rechargeable Batteries
Waterproof with IP54
Easy to Install or Uninstall
Automatic Self-leveling
More Precisely More Efficiently
One-click Operation

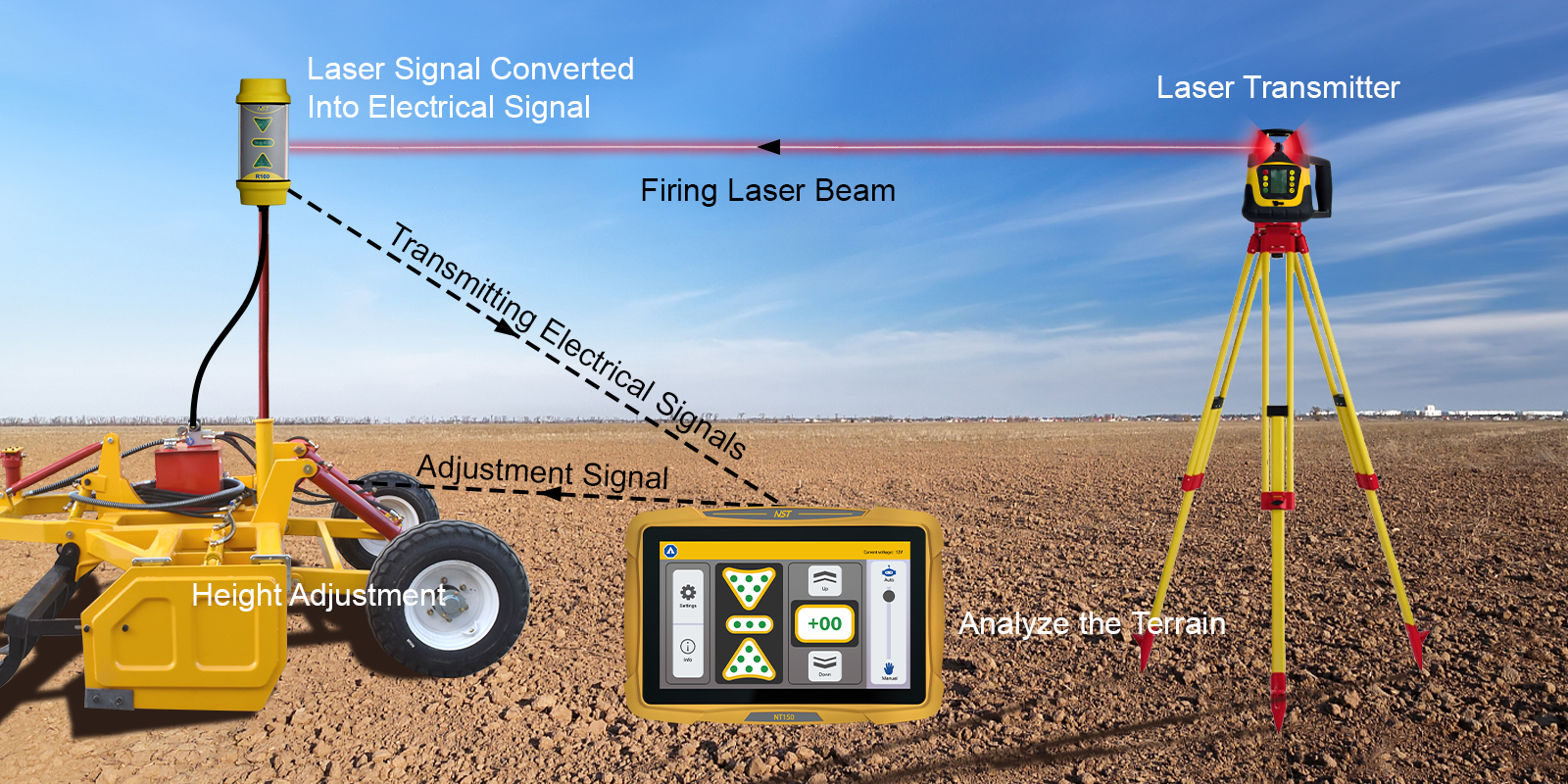

Working Principle
The laser leveling system uses laser technology to achieve high-precision land leveling.
Its core principle is that the laser transmitter emits a high-speed rotating (300-600 rpm) laser beam to form a reference plane covering the working area.
The laser receiver installed on the hydraulic mast then detects the laser signal in real time and converts it into an electrical signal to transmit to the control tablet.
The control tablet then analyzes the terrain height difference based on the receiver signal and adjusts the lifting height of the scraper through the hydraulic system to achieve the automated leveling operation of "digging high and filling low".

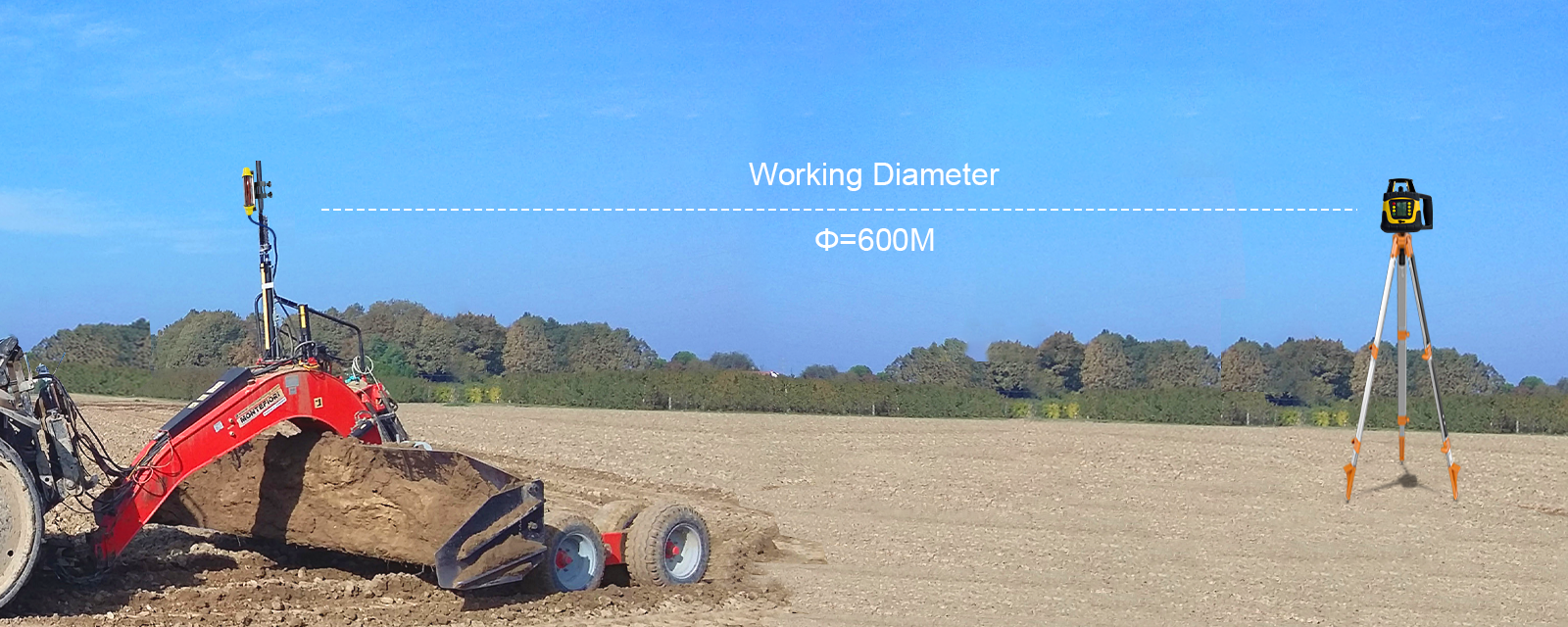

Wide Range
Effective working diameter up to 600m.

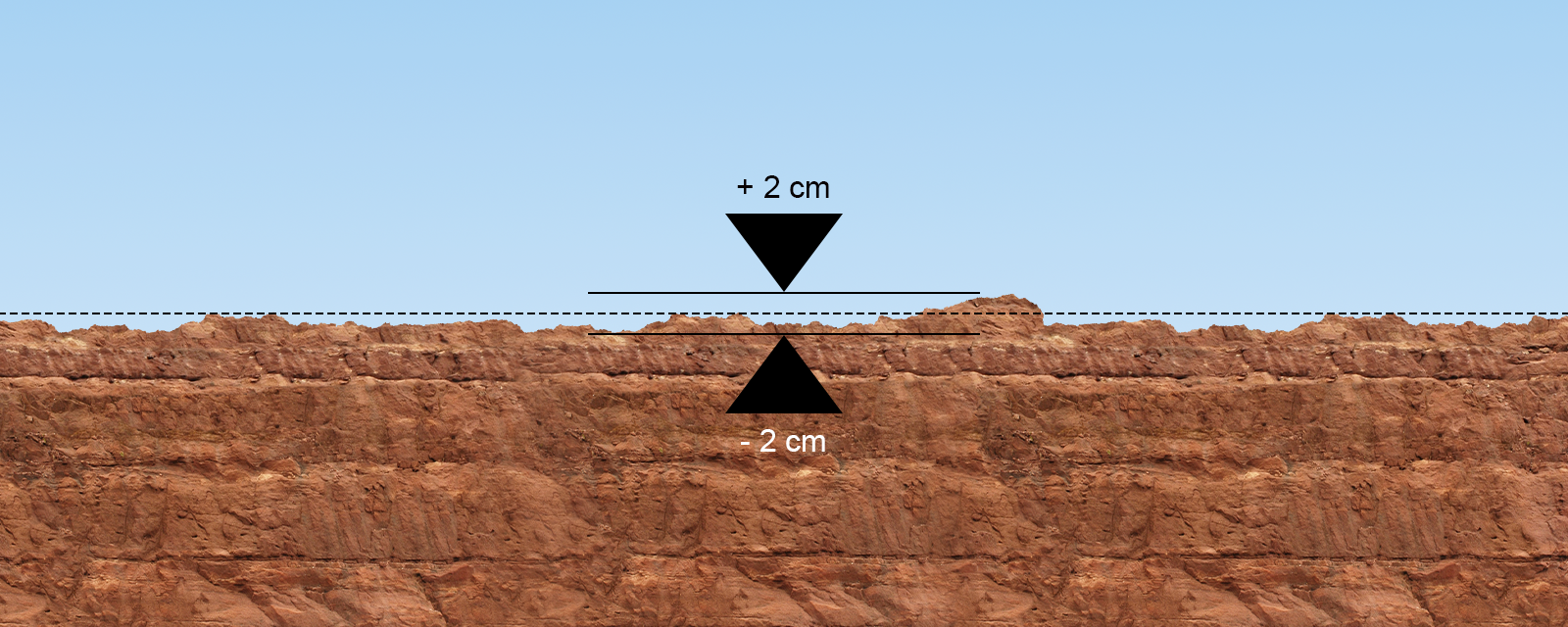

High Precision
The leveling accuracy can reach ±2 cm, far exceeding the rough leveling effect of traditional machinery.
Irrigation Efficiency
The irrigation efficiency is increased from 40%~50% to 70%~80%.
30%
Land Utilization Rate
Land utilization rate increased by 9%.
9%
Crop Yield
Crop yield increased by 20%~30%
20% ~ 30%
Fertilizer Utilization Rate
Fertilizer utilization rate increased by more than 20%
20%
Automated Operation
Reduce manual dependence, a single person can complete measurement and operation, reducing 80% of measurement costs.
Application
Paddy Field Leveling
Arid Surface Leveling
Reclaim Wasteland
Terraced Fields Leveling
Technical Parameters

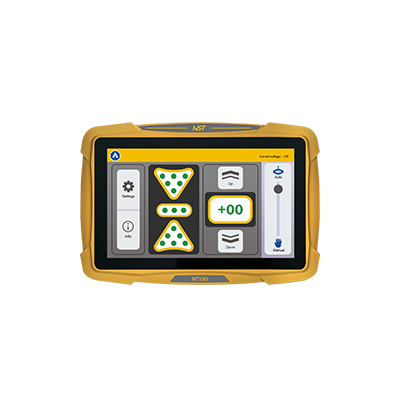

NT150-L Control Tablet
Dimension
297 mm * 203 mm * 43 mm
Weight
1.6 kg
Display
10.1 Inches Screen
Resolution
1024 * 600 px
Brightness
200 nit
Storage Temperature
- 20 ℃ ~ 60 ℃
Operating Temperature
- 20 ℃ ~ 60 ℃
Dust & Water Resistance
IP 65
Input Voltage
12 V
Load
36 W
Power (Normal)
7.44 W
Interface
IO_INPUT * 6, DC_OUTPUT * 2

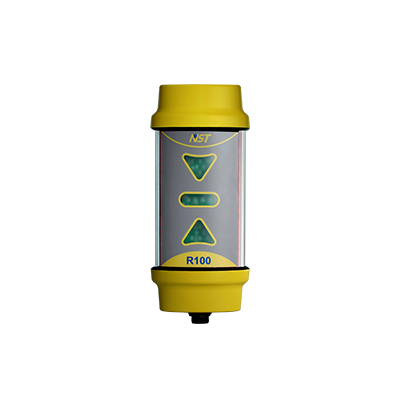

R100 Laser Receiver
Beam Reception Range
360 °
Vertical Reception Range
200 mm
Display
High-brightness Color LED for status indication
Weight
4 kg
Dimension
410 mm * 350 mm * 200 mm
OperatingTemperature
- 40 °C ~ 70 °C
Storage Temperature
- 55 °C ~ 85 °C
Input Voltage
9 ~ 16 V
Dust & Water Resistance
IP 65
L100S Laser Transmitter
Laser Source
Laser diode, wavelength 635 nm Less than 1 mw
Operating Range (Diameter)
600 m
Self-leveling Accuracy
± 1 mm/1.5 m
Self-leveling Range
± 5 °
Rotation Speed
600 rpm
Remote Control Distance
40 m Diameter (indoor)
Dimension
440 mm * 280 mm * 380 mm
Operating Temperature
- 20 °C ~ 50 °C
Storage Temperature
- 20 °C ~ 60 °C
Power Supply
DC 4.8 ~ 6 V (Ni-MH C 4000 mAh 1.2 V)
Dust & Water Resistance
IP 65
Continuous Working Time
15 hours
Accessories
NT150-L Control Tablet
R100 Laser Receiver
