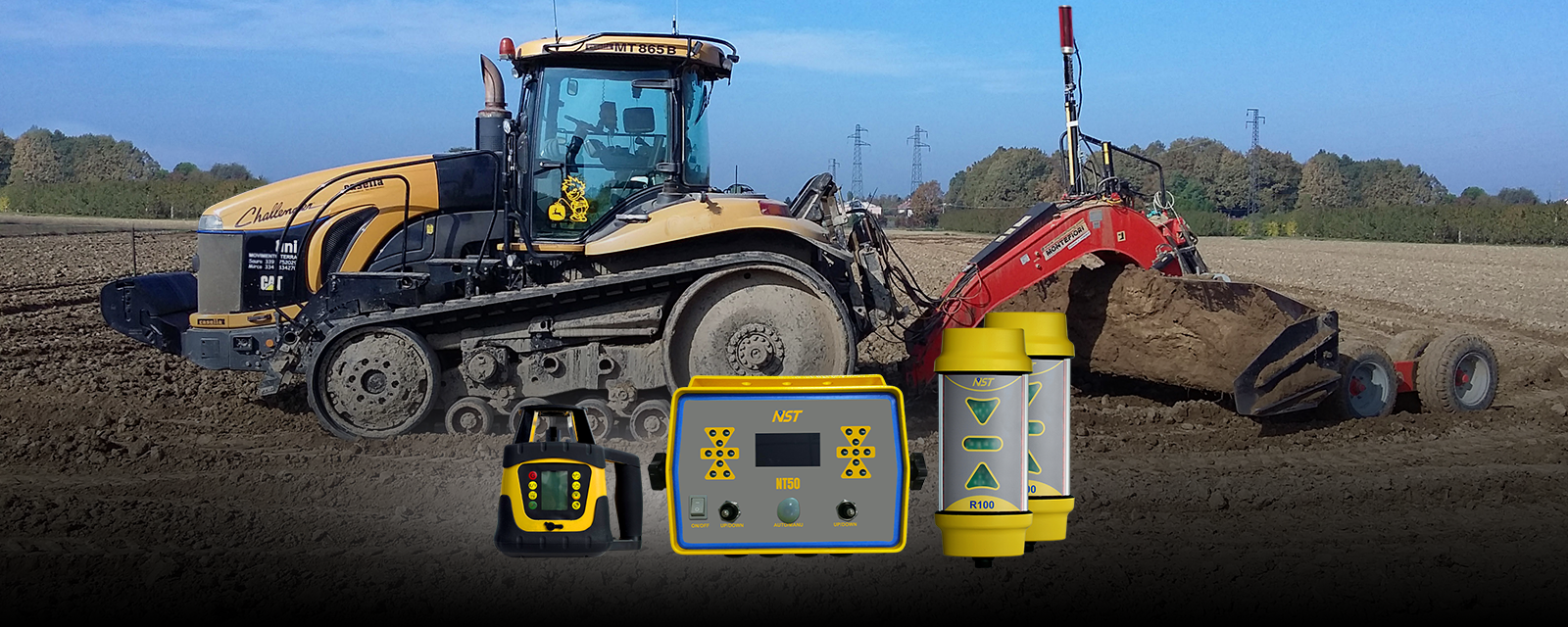

N50 Laser Land Leveling System (Dual Control)
N50 laser land leveling system is developed for land leveling application which is based on laser and electric hydraulic control. The system is high accuracy, high precision of EHC, stableperformance, easy operation, dust and water proof, shockproof and durable, lt is used for high precision land leveling, the accuracy is ±2cm,it helps for water-saving irrigation, uniformly fertilization and output increasing.
Single Laser Base System
Horizontal Leveling Sloping Leveling
NI-MH Rechargeable Batteries
Waterproof with IP54
Easy to Install or Uninstall
Automatic Self-leveling
More Precisely More Efficiently
One-click Operation
Working Principle
The laser leveling system uses laser technology to achieve high-precision land leveling.

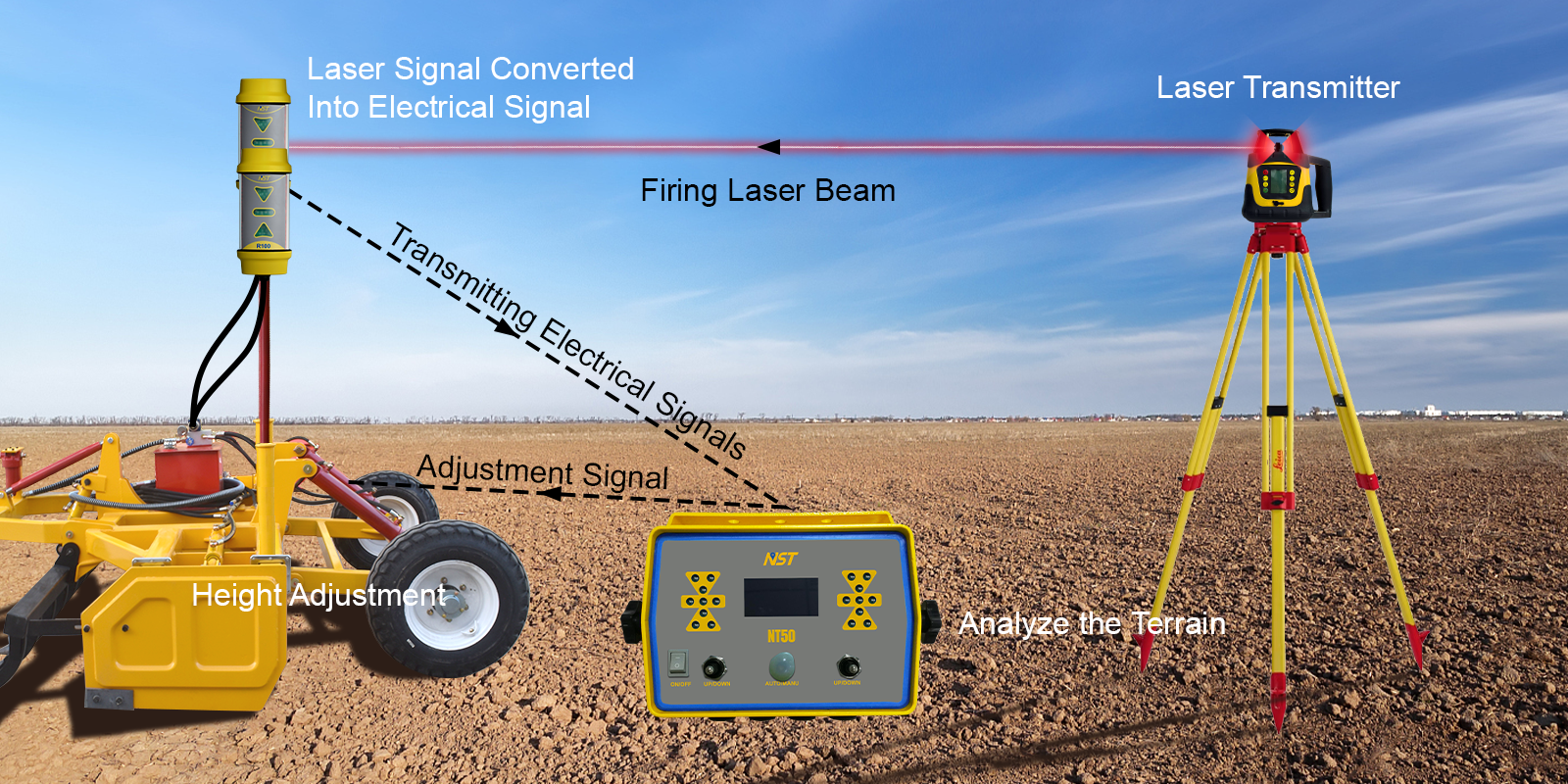

Its core principle is that the laser transmitter emits a high-speed rotating (300-600 rpm) laser beam to form a reference plane covering the working area.
The laser receiver installed on the hydraulic mast then detects the laser signal in real time and converts it into an electrical signal to transmit to the control tablet.
The control tablet then analyzes the terrain height difference based on the receiver signal and adjusts the lifting height of the scraper through the hydraulic system to achieve the automated leveling operation of "digging high and filling low".
Wide Range

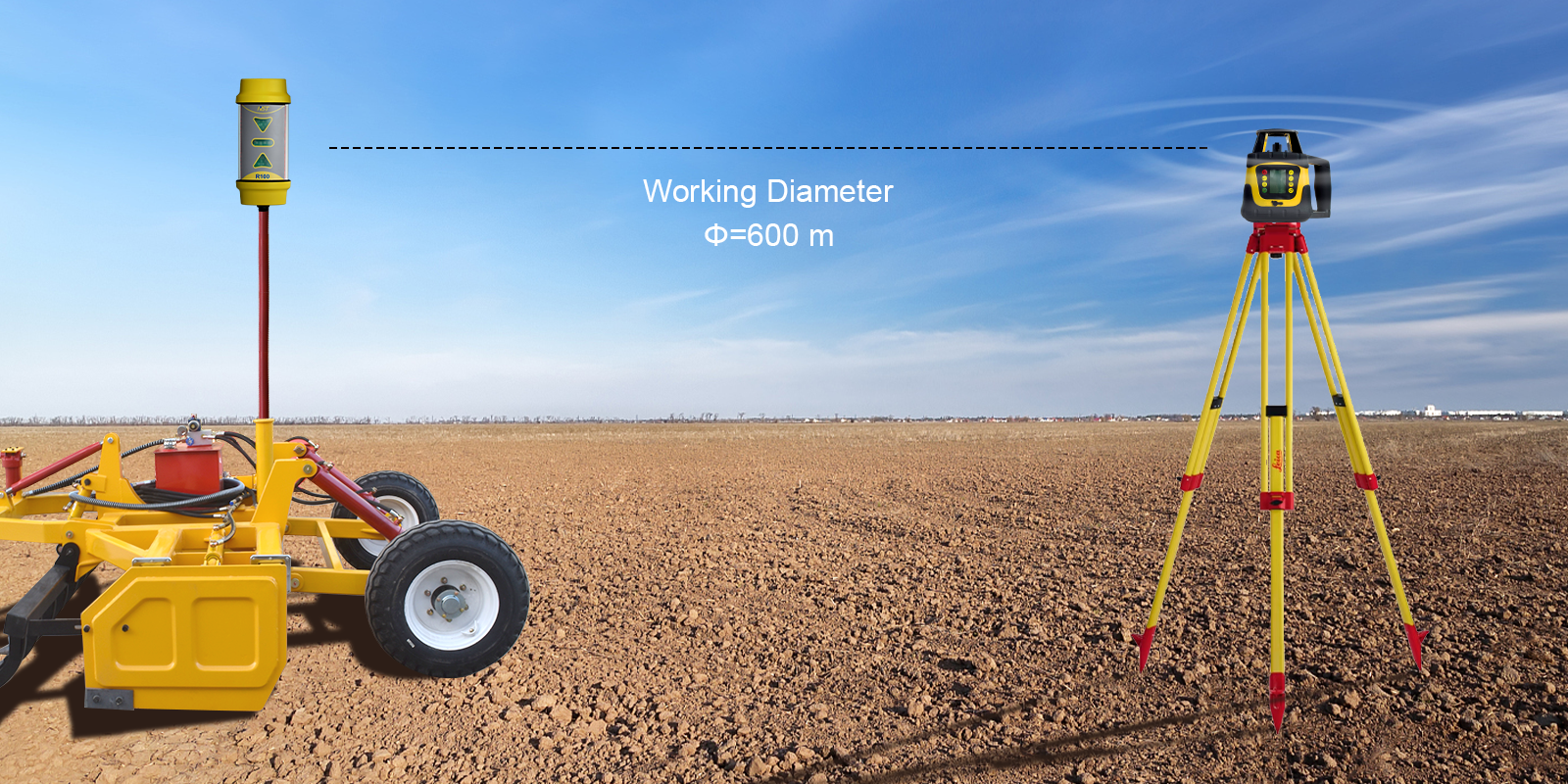

Effective working diameter up to 600m.
High Precision

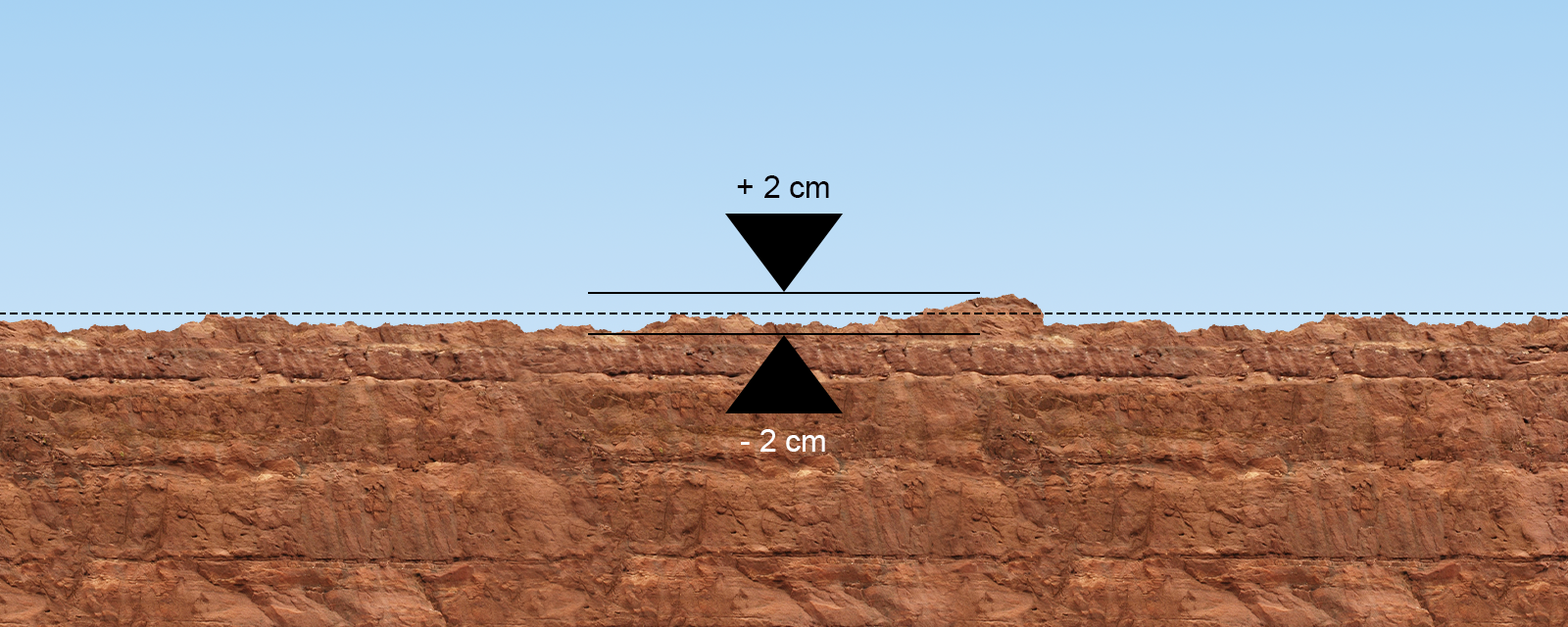

The leveling accuracy can reach ±2 cm, far exceeding the rough leveling effect of traditional machinery.
Irrigation Efficiency
The irrigation efficiency is increased from 40%~50% to 70%~80%.
30%
Land Utilization Rate
Land utilization rate increased by 9%.
9%
Crop Yield
Crop yield increased by 20%~30%
20% ~ 30%
Fertilizer Utilization Rate
Fertilizer utilization rate increased by more than 20%
20%
Automated Operation
Reduce manual dependence, a single person can complete measurement and operation, reducing 80% of measurement costs.
Application
Paddy Field Leveling
Arid Surface Leveling
Reclaim Wasteland
Terraced Fields Leveling
Technical Parameters
Vehicle-mounted Controller NT50
Display
OLED Display Screen
Accuracy of Leveling
± 2 cm
Operating Temp
- 40°C ~ 71°C
Storage Temp
- 55°C ~ 85°C
Gross Weight
6 kg
Dimension
410 mm * 350 mm * 200 mm
Interface
Power * 1, ControlReceiver * 1

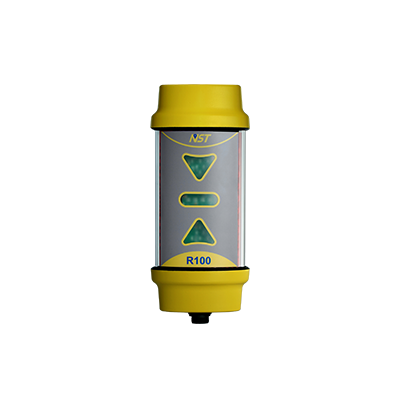

R100 Laser Receiver
Beam Reception Range
360 °
Vertical Reception Range
200 mm
Display
High-brightness Color LED for status indication
Weight
4 kg
Dimension
410 mm * 350 mm * 200 mm
OperatingTemperature
- 40 °C ~ 70 °C
Storage Temperature
- 55 °C ~ 85 °C
Input Voltage
9 ~ 16 V
Dust & Water Resistance
IP 65

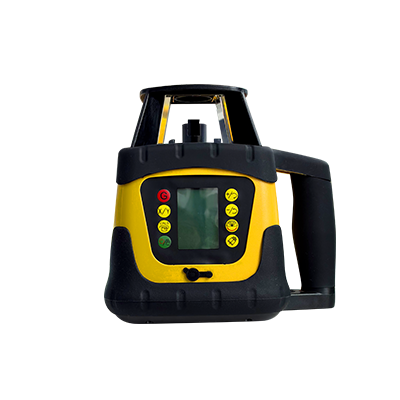

L100 Laser Transmitter
Laser Source
2.5mW Laser Diode
Operating Range (Diameter)
600 m
Self-leveling Accuracy
± 0.05 mm/m
Self-leveling Range
± 5 °
Rotation Speed
600 rpm
Gross Weight
5.5 kg
Dimension
440 mm * 280 mm * 380 mm
Operating Temperature
- 20 °C ~ 70 °C
Storage Temperature
- 20 °C ~ 80 °C
Power Source
NiMH rechargeable battery, continuously work for 10 hours
Dust & Water Resistance
IP 65
Accessories
Vehicle-mounted Controller NT50
R100 Laser Receiver
