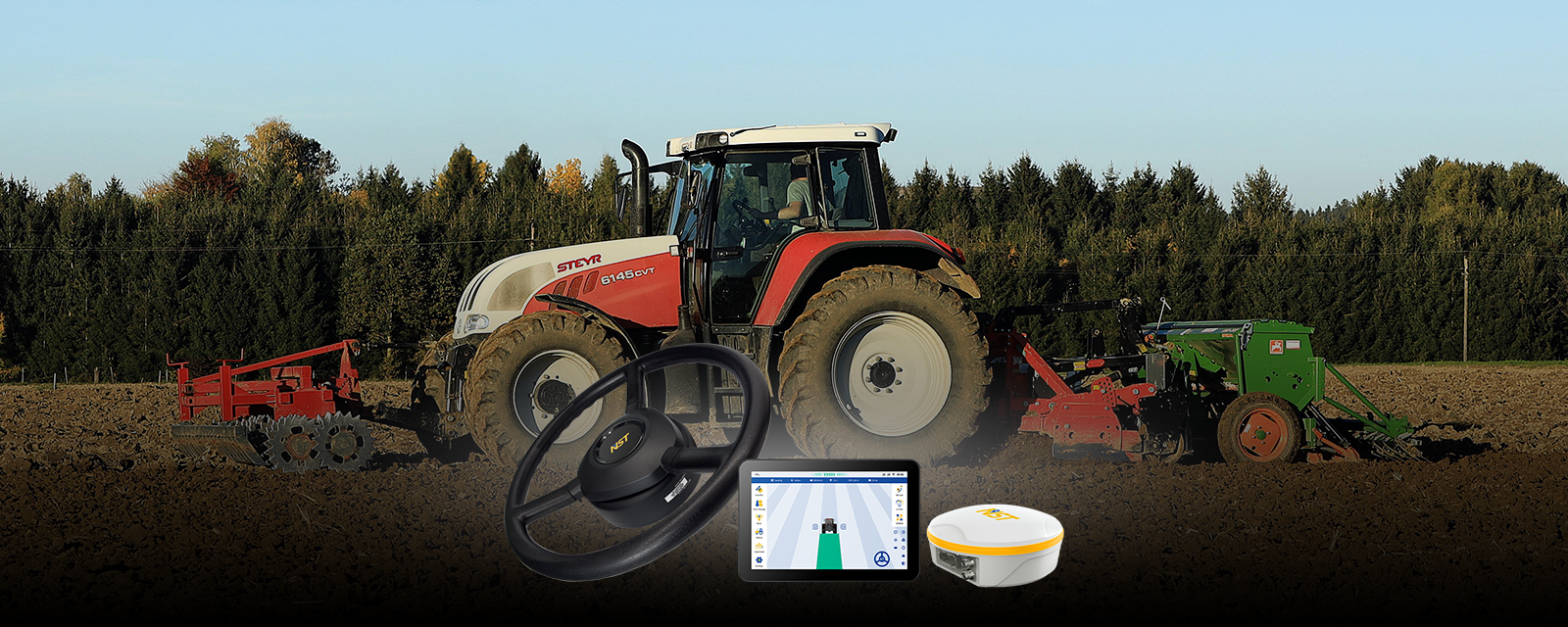

N600 GNSS Auto Steering System
NST® N600 Auto Steering System revolutionizes farming efficiency with high-tech-driven precision. This advanced system delivers centimeter-level accuracy by GNSS-RTK navigation, enabling automated field operations like plowing, seeding, and harvesting. This system features intelligent path optimization, multi-machine coordination, and adaptive terrain handling for 24/7 productivity. Here are the advantages of this product: Cut fuel costs by 30%, reduce human errors by 95%, and seamlessly integrate with smart farming ecosystems. Built with IP67 protection and universal tractor compatibility, it's born for tomorrow's smart agriculture.
Mutiple Line Options
Farm Management
ISOBUS
Terrain Compensation
High Precision GNSS
Free PPP
GIS Information
Automatic U-Turn

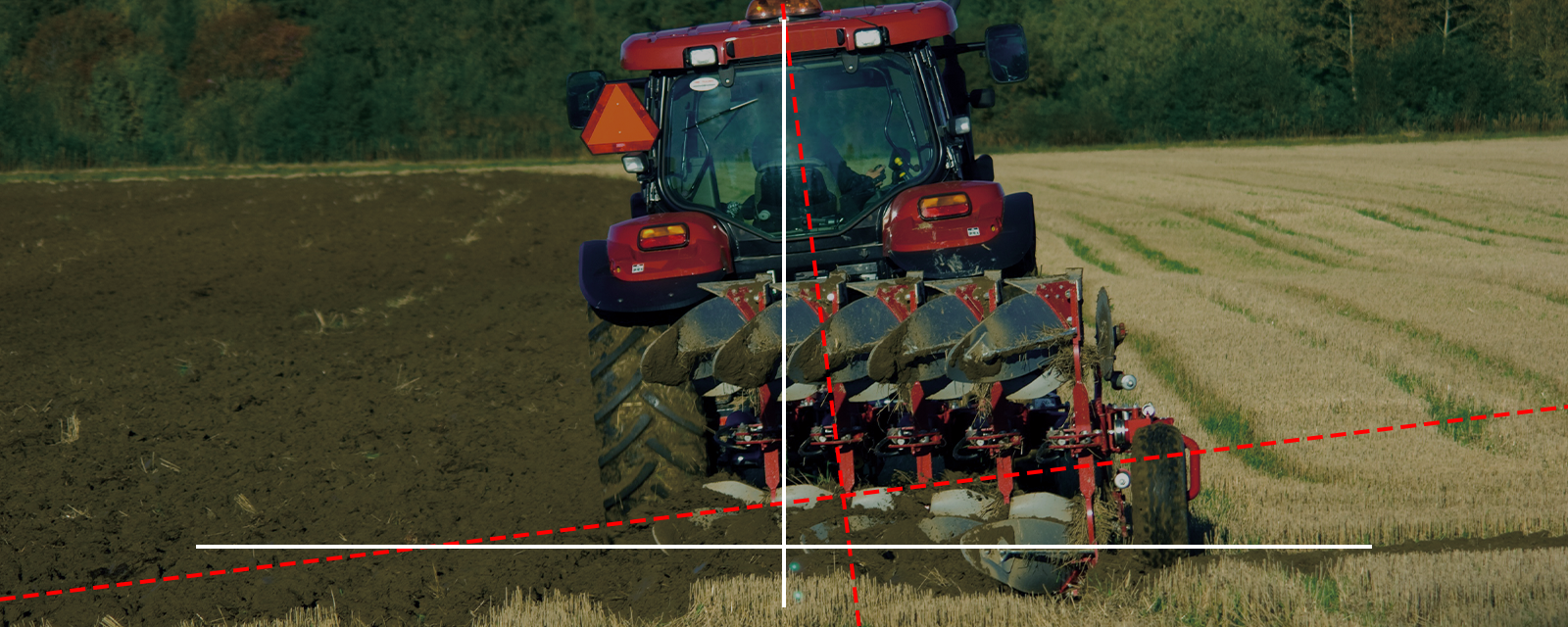

Terrain Compensation
To meet varied farm demands from slope work and low-speed tasks like potato planting to high-speed operations including crop protection and fertilizing a positioning accuracy of 2.5 cm will be consistently maintained.

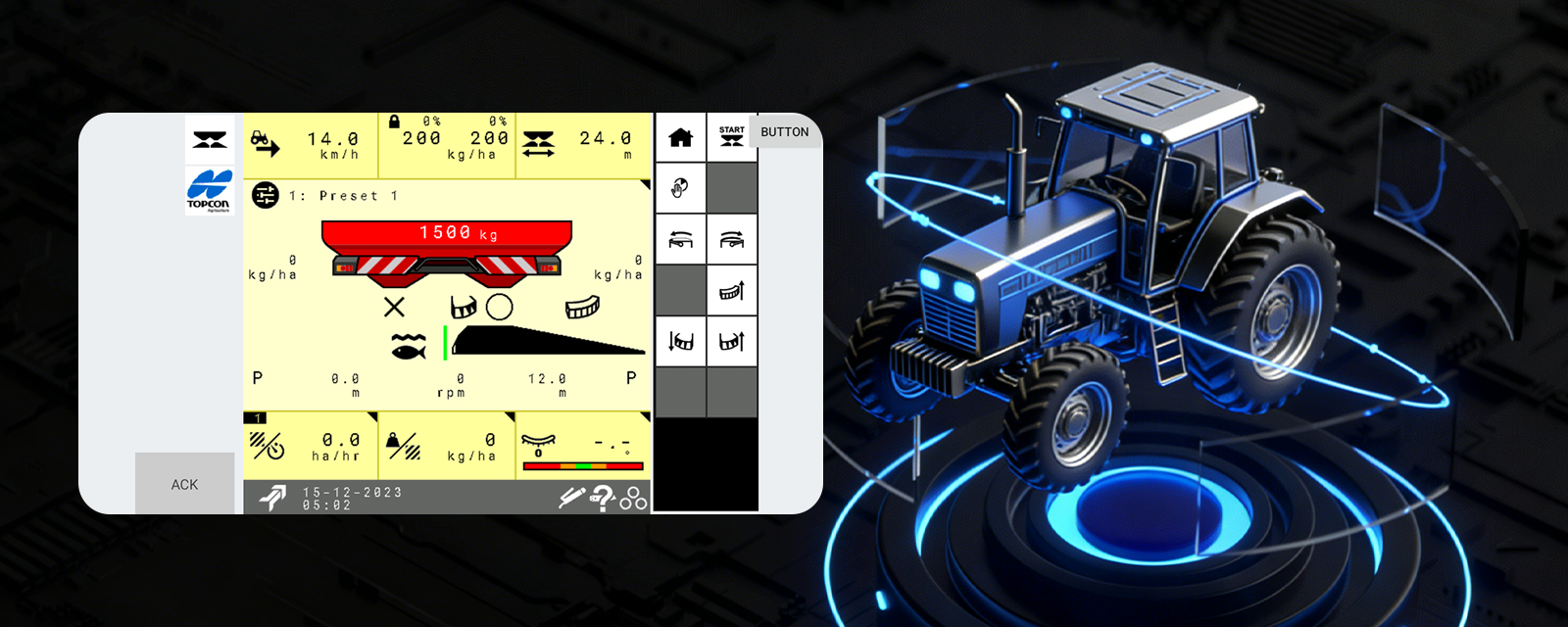

ISOBUS
Simplify your farm management with the ISOBUS Virtual Terminal. Use one central hub to precisely control all your implements from planting to spraying. This streamlines tasks, boosts efficiency, and makes advanced technology easy to use.

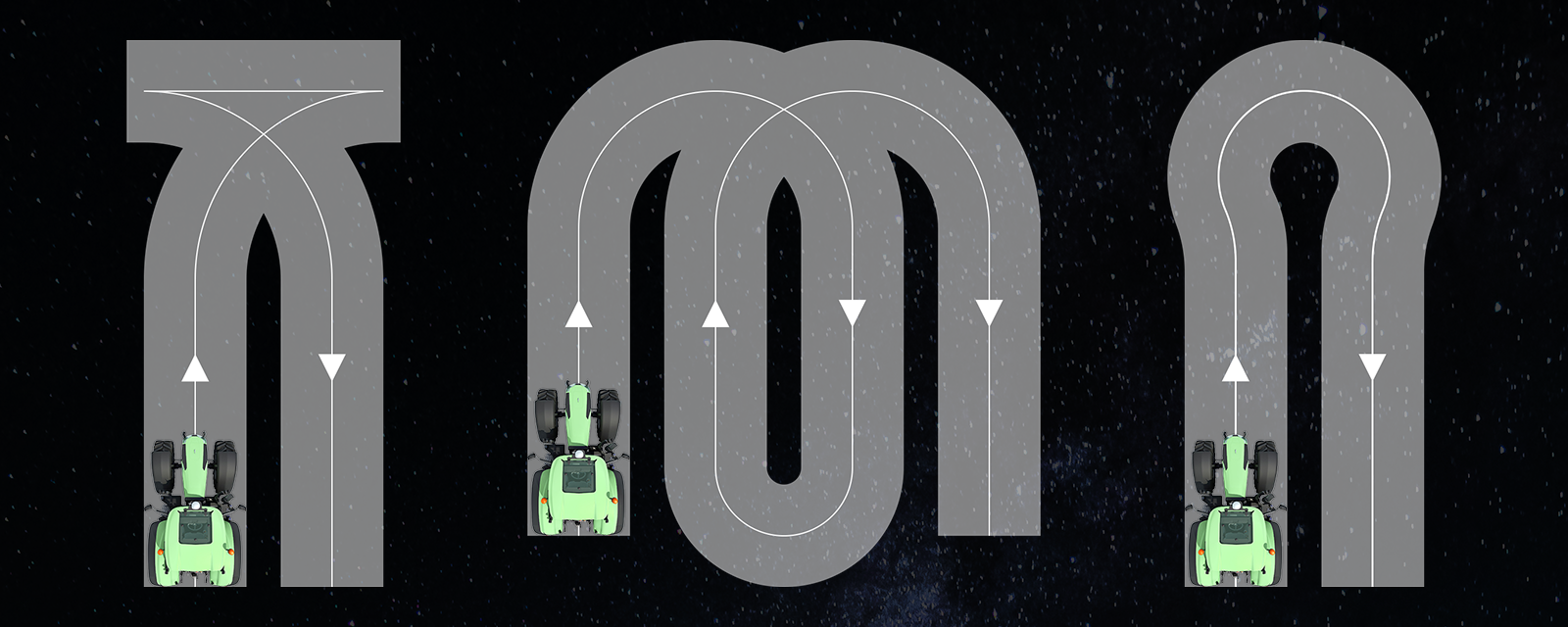

Automatic U-Turn
U turn allows for a quick and easy turnaround to the next row.
Multiple Correction Signals Supported
Our system seamlessly integrates multiple correction sources (RTK, PPP, SBAS). Experience reliable, centimeter level performance without the constraints of cellular coverage.

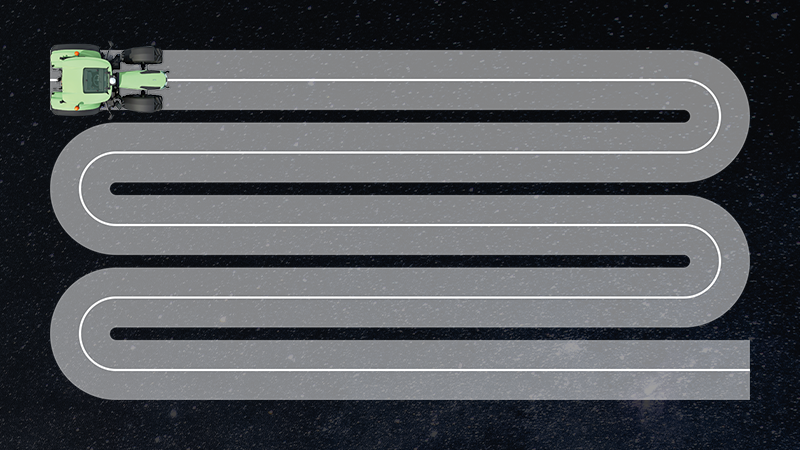

Intelligent Path Planning
straight Line
Concentric Circles

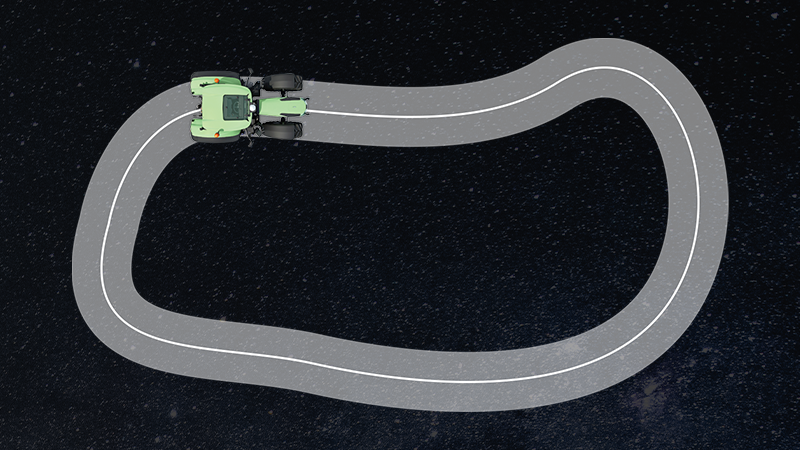

Closed Curve
Curve

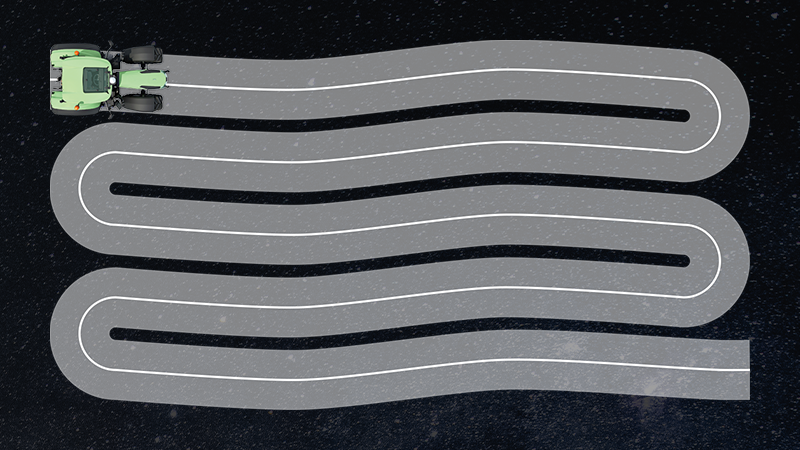

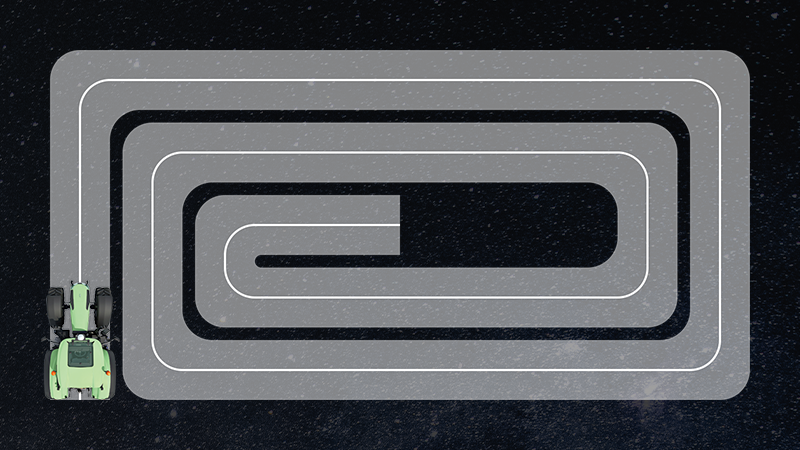

Back Pattern

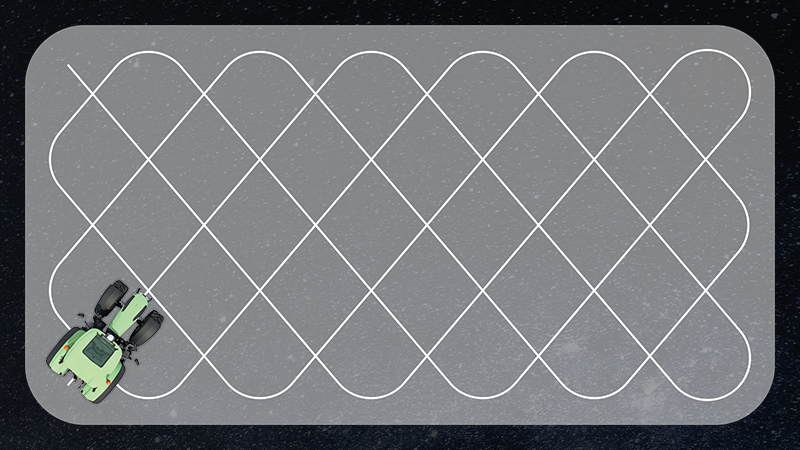

Diagonal Rake

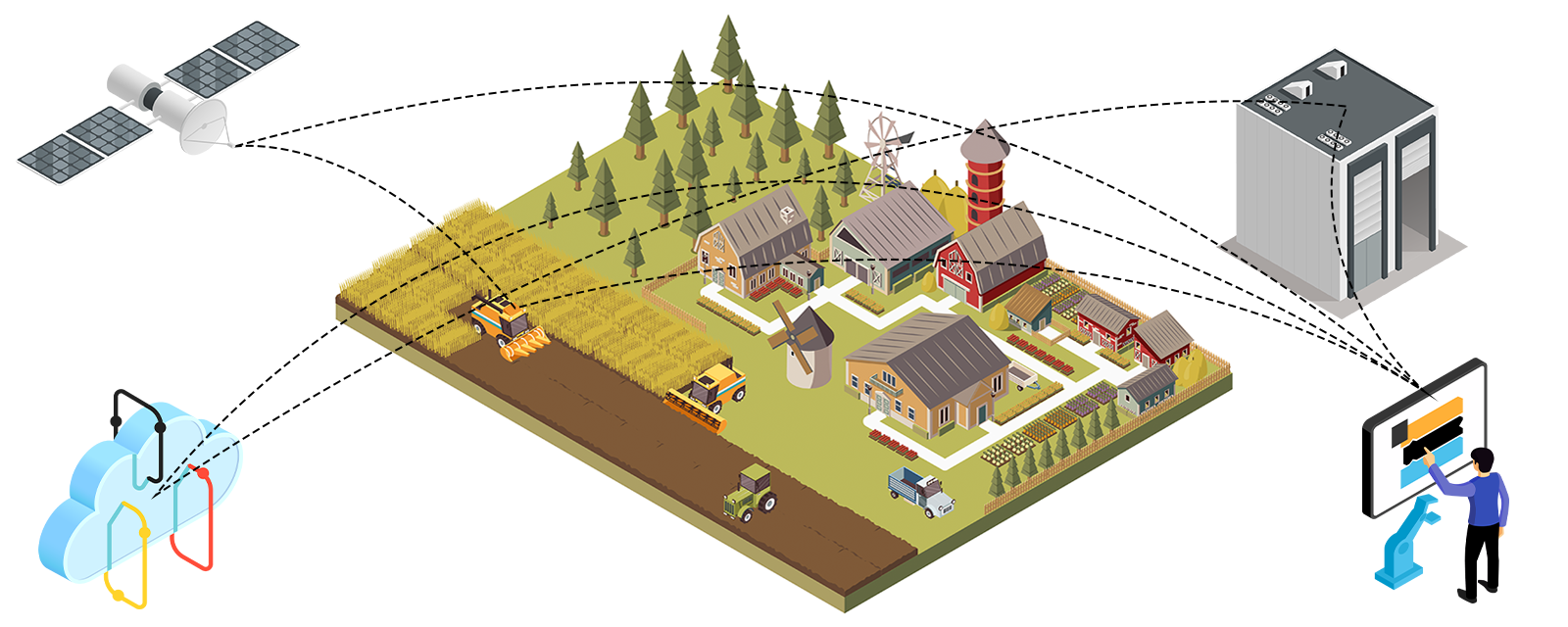

Nais Farm Management
Application
Soil Preparation
Sowing

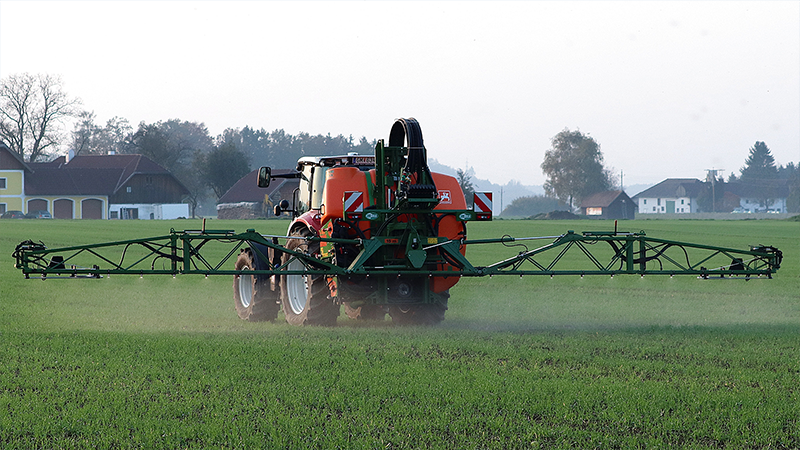

Spraying

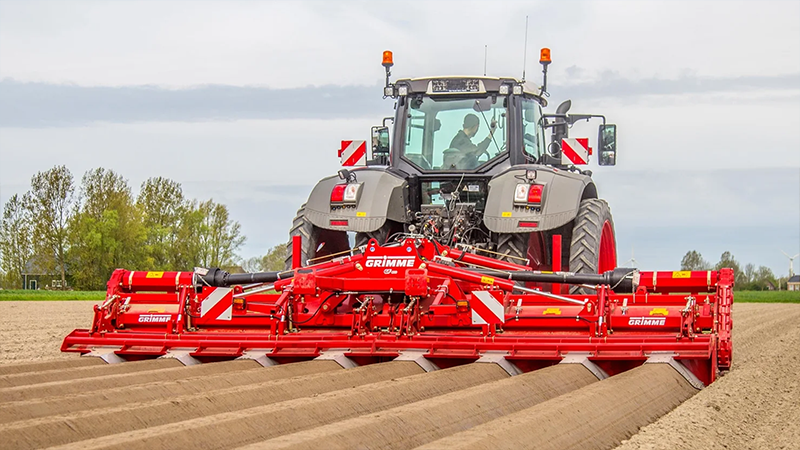

Ridging

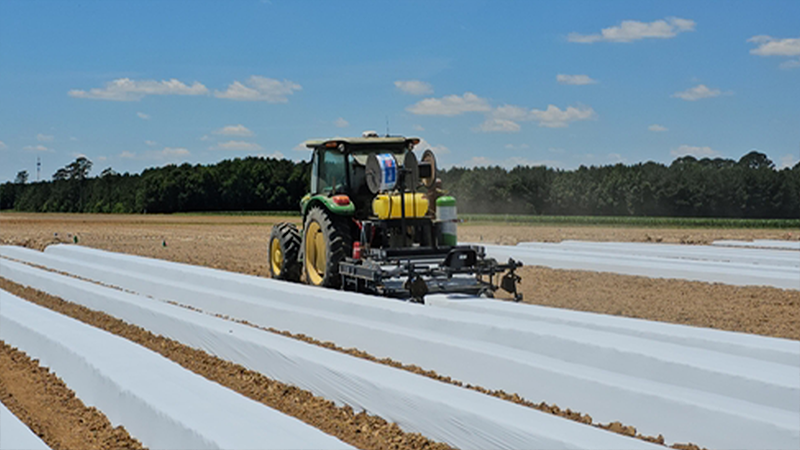

Mulching
Harvesting
Technical Parameters
Control Tablet
Operating System
608 CC
Display
10.1" Capacitive Touch Screen
IP Rating
1110 mm * 1200 mm * 620 mm
Dimension
24 V
Weight
60 °
Wi-Fi Communication
IEEE 802.11 a/b/g/n/ac/r 2.4G & 4G & 5G network
Bluetooth
Ver 5.0 Supports BLE
Interfaces
CAN Bus * 2, RS232 * 1, RS485 * 1
High-Torque Motor Wheel
Rated Torque
4 Nm
Maximum Torque
9 Nm
Power Supply
DC 6 ~ 35 V
Motor Diameter
182 mm
Motor Thickness
61 mm
Motor Material
Aluminum alloy
Weight
2.9 kg
Volante Diameter
410 mm

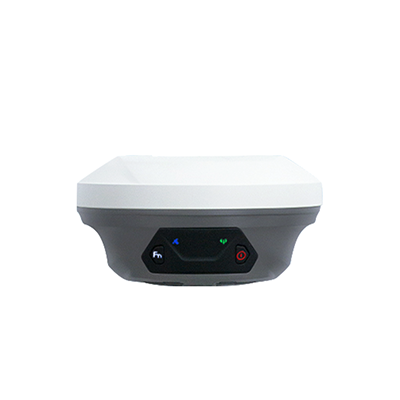

Smart GNSS Receiver
Built-in
GNSS board, IMU sensor, Radio, Antenna
Dimension
179 mm * 179 mm * 69 mm
Weight
1.1 kg
IP Rating
IP 67
Power Supply
DC 9 ~ 36 V
GNSS Support
GPSL1/L2, BDS B1/B2, QZSS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b
Communication Protocol
NMEA 0183
Optional Accessories

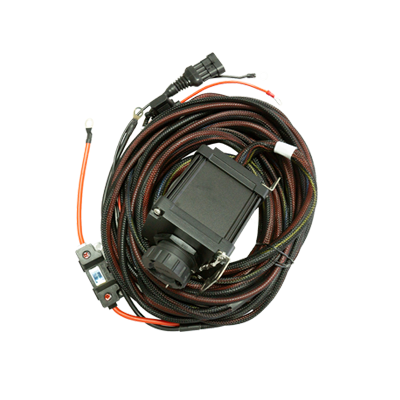

ISOBUS Cable

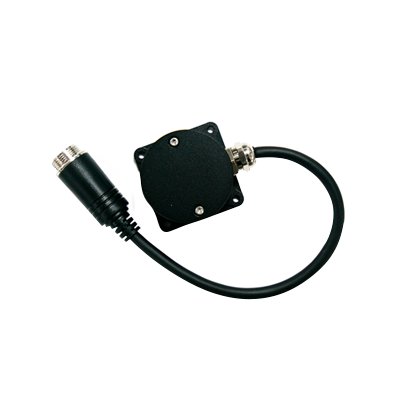

Front Wheel Sensor

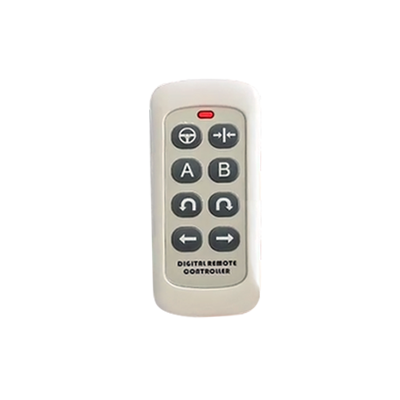

Bluetooth Steering Wheel cover

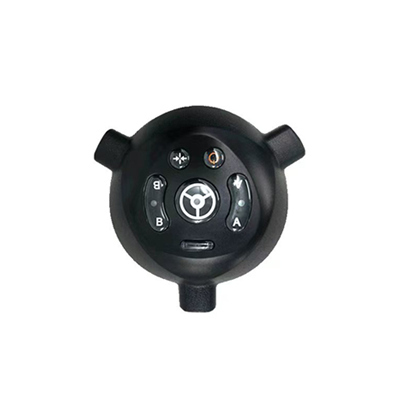

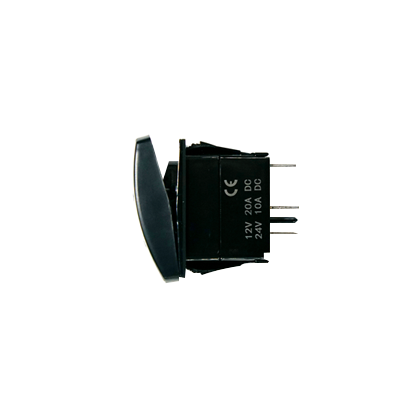

Manual Switch
