Tractor auto steering

N500

Auto steering for tractor-N500

Supporting agricultural work all year round

Cultivation, planting, fertilization, harvesting

By retrofitting the N500 automatic steering system to existing agricultural machinery, it can automate driving operations that require concentration and physical strength, making farm work easier.

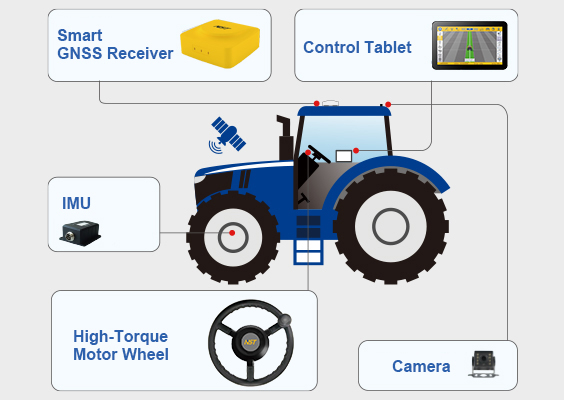

No complicated work is required, and the antenna, console, handle, wiring, wheel angle sensor, etc. can be easily installed and removed. Of course, it can also be transferred to other agricultural machinery. (Most agricultural machinery can be retrofitted.)

Anyone, even those without an experienced operator, can perform agricultural work easily, efficiently, and with high precision.

Videos of results from around the world

Easy to install

*Note: The steering wheel will be replaced with an automatic steering wheel, so the warning horn may need to be removed depending on the machine. (Please contact your nearest agricultural machinery dealer for horn relocation processing.)

The realization of precision agriculture

NST N500 automatic steering system uses GNSS and RTK to achieve the industry's highest level of work accuracy of within ±2.5cm on any terrain.

This reduces the covering width, prevents overlapping work, and reduces the damage rate of the harvested crop.

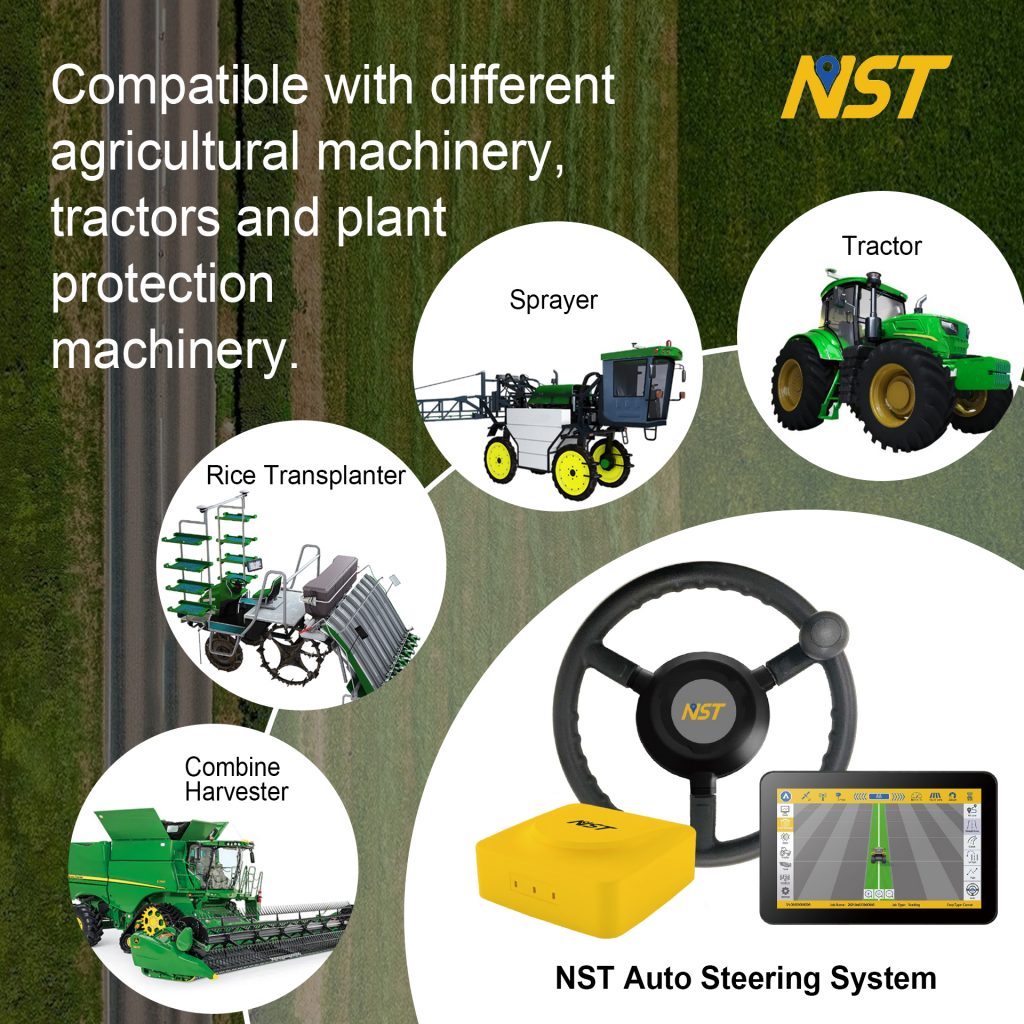

Compatible with a variety of agricultural machinery

The system is compatible with a wide range of tractors, rice planters, and other agricultural machinery,

The system helps to avoid duplicate work and reduce costs, leading to improved productivity.

Stable auto steering even
at ultra-low speeds of 0.1 km/h

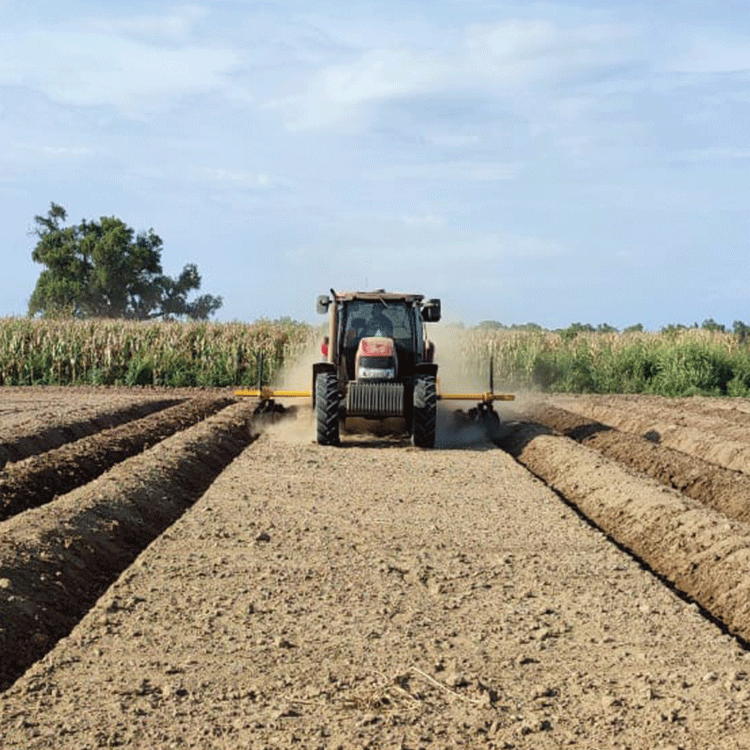

Precise auto steering greatly reduces the burden of ridge painting.
* A gyroscope that supports work at ultra-low speeds of 0.1km/h is optional.

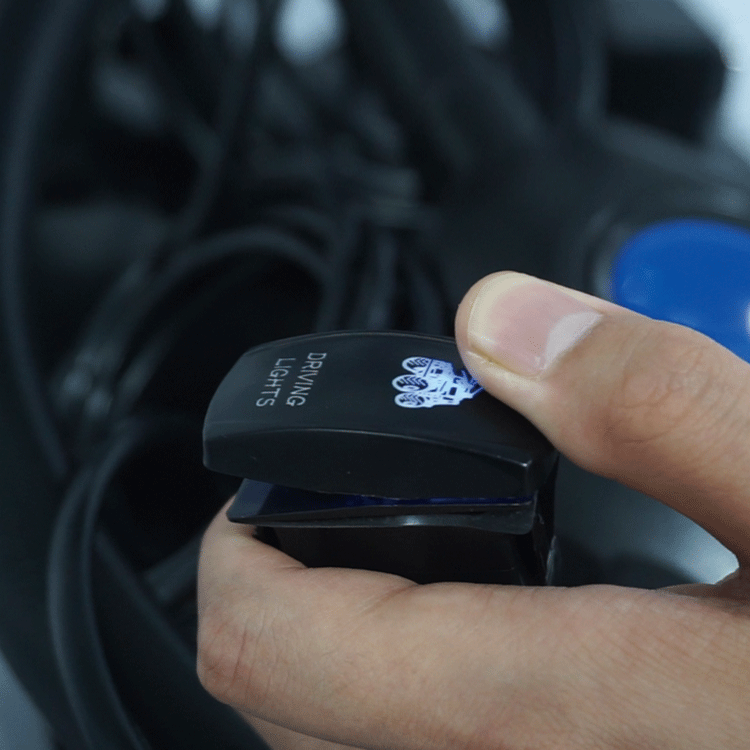

Auto steering ON-OFF switch

The automatic steering ON/OFF switch can be installed in an easy-to-operate position,

You can work comfortably.
*The auto steering ON-OFF switch is optional.

Standard Equipment

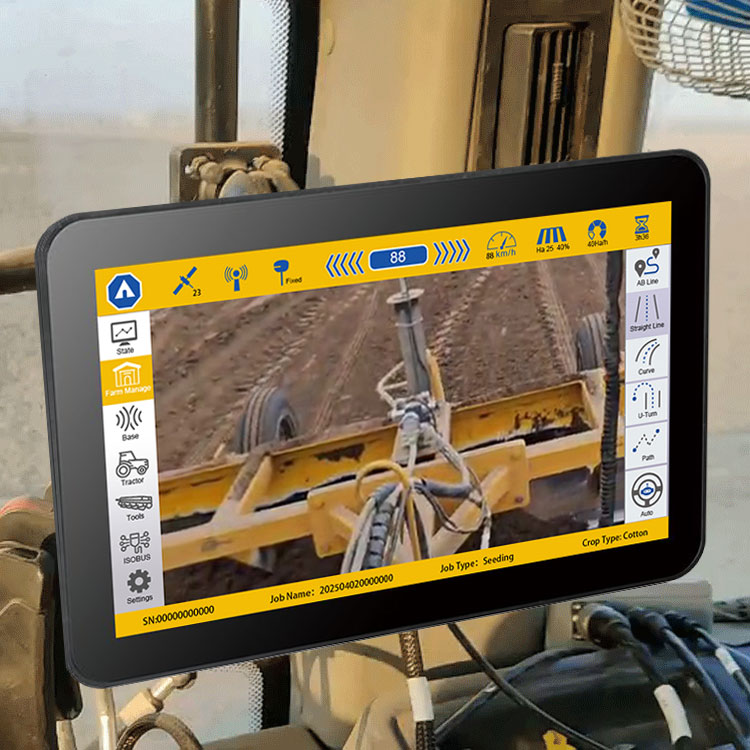

Rear camera

The rear work status can be displayed on the monitor.

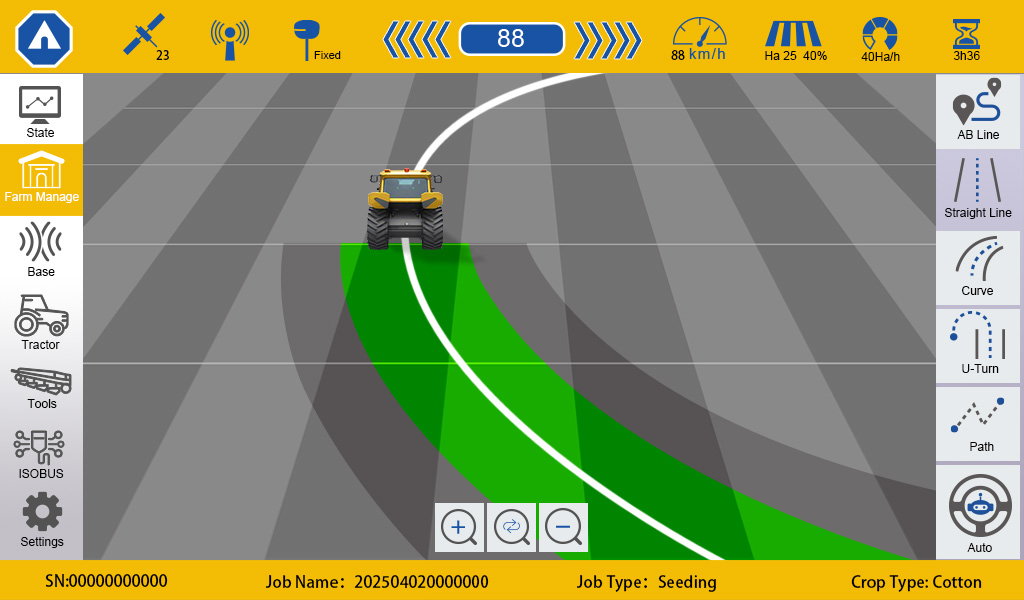

ABC concentric circle guidance

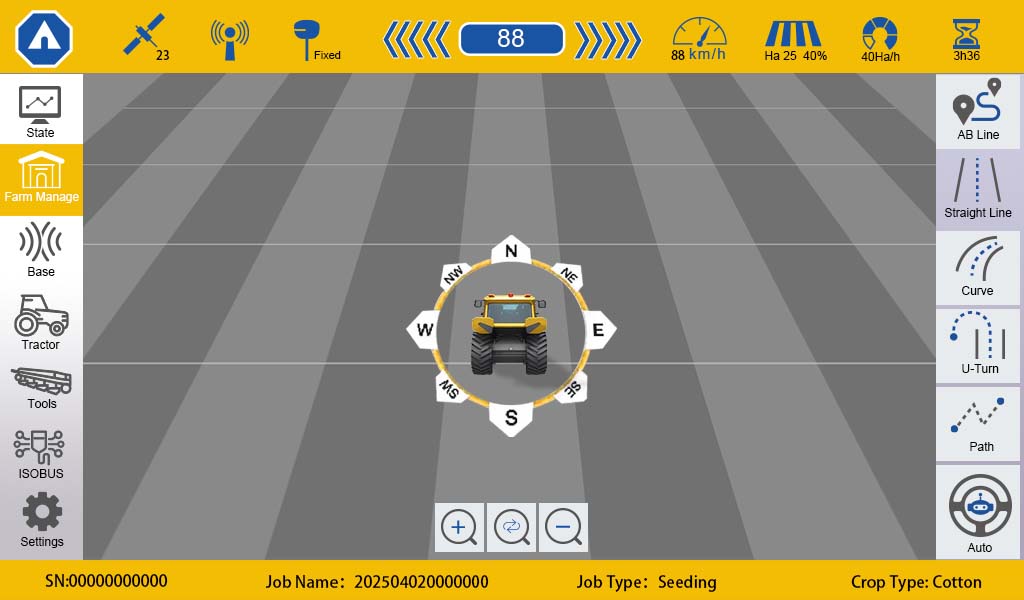

A+ Any Direction Guidance

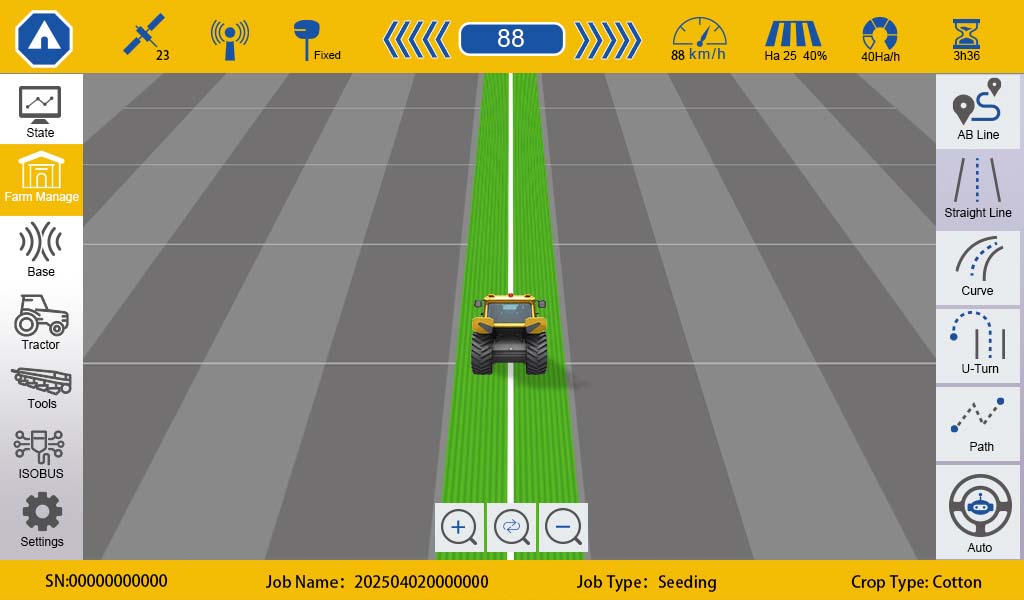

AB Line Guidance

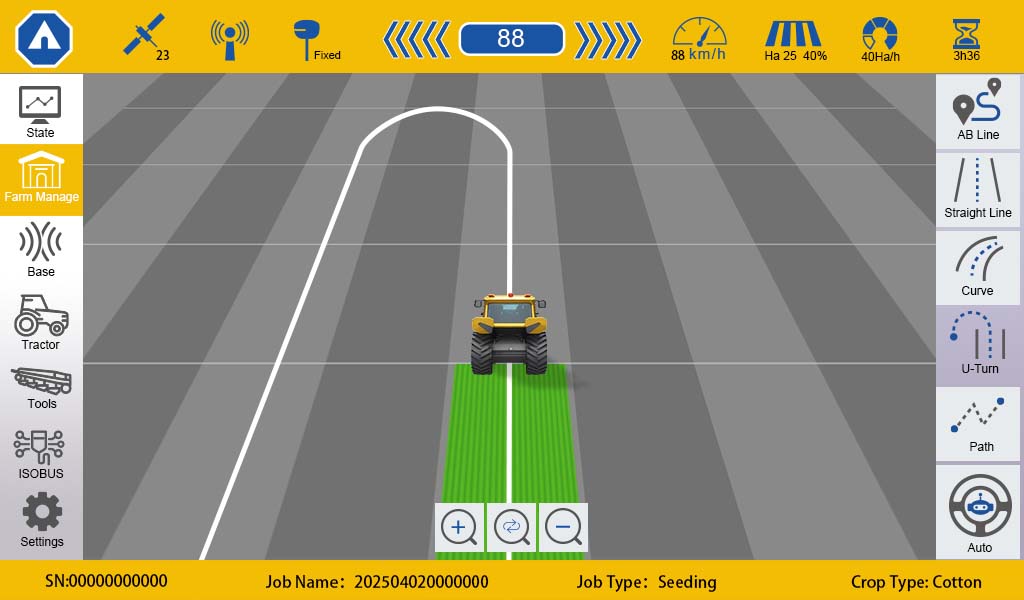

U-turn guidance

Reference example:

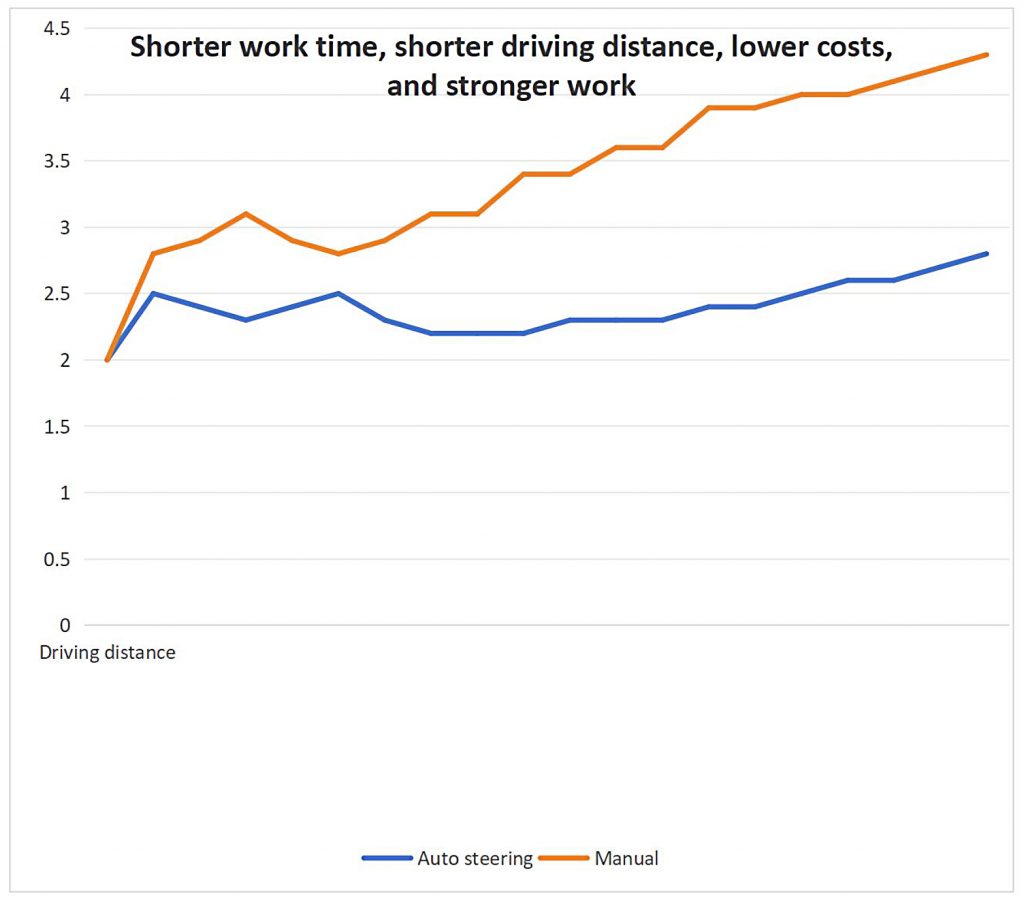

Effects of introducing autopilot

1. Significantly reduced mileage

This will lead to a reduction in rising fuel costs, shorter working hours, and less fatigue.

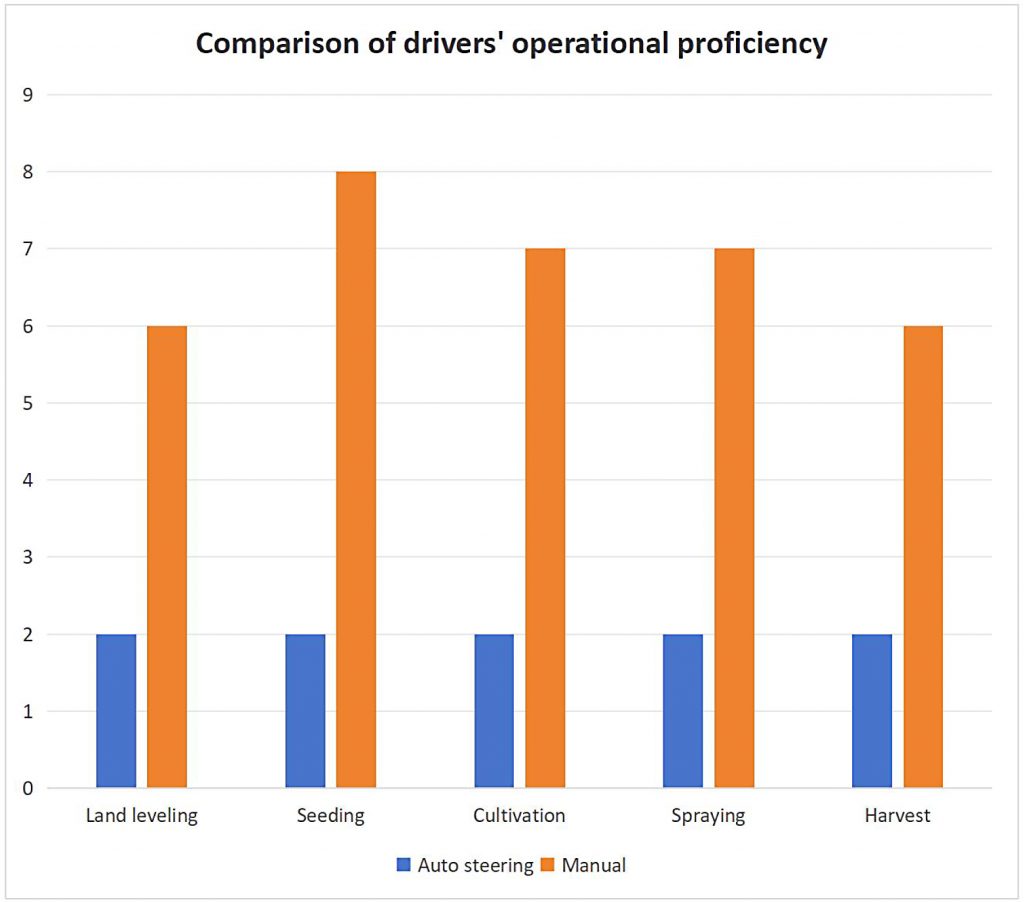

2. Even inexperienced operators can now carry out difficult tasks

FAQ

・What are the policies/protections for agents?

There is a strict protection policy for agents!
Agents are regulated in the scope of sales, and as a rule, it is not permitted for more than two agents to act in the same region. Prices are uniform even in different regions, so price competition between agents is strictly prohibited. If sales are discovered across regulated regions, the agent’s agency rights will be immediately revoked.
Sales promotion support: Agents can be reimbursed at a certain rate for expenses incurred through local PR, exhibitions, and advertising activities (proof such as receipts is required).

・What about technical support?

Our products are widely used overseas and have passed harsh environments. They are now easy to install and stable to use. In addition, we have instruction videos and manuals for your reference, and we have technical guidance available for online support at any time. After purchasing the product, we provide technical support for how to use it, etc. for three months online support and six months on-site support.

・Where do you ship from? What is the shipping time? Do you have offices in other countries?

We have a business partnership with DHL/Fedex. Domestic shipping from our Japanese branch takes 6 days from the next day, and from our overseas headquarters takes about a week. Our headquarters is in China, and our branch is in Japan.

・Do I need to change my hydraulic system?

This product is electric motor controlled and does not require any modification to the hydraulic system.

・After-sales service/warranty

Warranty period: 1 year for main parts (motor, tablet, base station).

3 months for accessories (antenna, sensor, wireless module, cable).

We can provide 7 x 24h service after sales of our products. We will do our best to satisfy our customers with the fastest response to any problems that occur during use. If any equipment trouble occurs during the warranty period that is not man-made, please return the product and we will provide a replacement product free of charge. If you are not satisfied during the trial use, please return it and we will give you a full refund.

・Payment term

Bank transfer 100% T/T

・Delivery

We can ship your order within 3 days after payment is confirmed. For bulk orders, the shipping time may take about 1-2 weeks.

・Is the tablet easy to use?

Let’s start with setting points for automatic steering. You can easily create a navigation line by setting point A and then manually driving to point B and setting it. With one touch of the automatic button, the car will automatically follow the navigation line without any manual intervention.

Automatic steering controls the steering in the first place, and manual operation is required to adjust the height of work equipment such as the accelerator and brakes.

・Is the NMEA function supported?

The NMEA function can be used by purchasing a separate NMEA harness. The NMEA function allows the GPS information received by the autopilot system to be sent to other devices for use.

Output data

-Baud rate:

1) Unit: Bits per second (B/S)

2) Baud rate options: 2400 B/S, 4800 B/S, 9600 B/S, 14400 B/S, 19200 B/S, 38400 B/S, 57600 B/S, 115200 B/S.

3) Default setting: 115200 B/S

-Output format: GGA (GNGGA), VTG (GNVTG), GST (GPGST), HDT (GPHDT)

-Output frequency options: 1/1 minute, 1/30 seconds, 1/10 seconds, 1/5 seconds, 1/1 second

・What should I do if there is a defect or malfunction?

The manufacturer’s engineers will respond online or replace the product.

*As the agent can communicate directly with the manufacturer’s engineers, they can share information about defects in real time, allowing for a faster response.

・How should I install it?

After purchasing from your local dealer, the dealer will install and set up the product. The product will arrive about one week after purchase, and installation and set up can be completed in about one day. The dealer will explain how to use the product and then provide you with a manual.

If you would like to install the product yourself, please contact our dealer.

If you do not know where your local dealer is, please check below.

▼NST Corporation website Dealer MAP

*To dealers: For installation of steering, splines, etc., we have published information on proven models, so please use this as a reference when installing the product.

・Network RTK, what is Ntrip account?

This is a service that corrects the GPS information received by the automatic steering system. Using network RTK enables high-precision work (error of ±2.5cm).

An Ntrip account is an account for using network RTK, and you will need to sign up for services such as Softbank’s Ichimir or Ares.

*In Hokkaido and Fukui Prefecture, base stations are built by prefectures and local governments, so in addition to Ichimir and Ares, you can use Hokuren RTK in Hokkaido and Fukui RTK in Fukui Prefecture. We also sell and install base stations, so you can use them after purchasing an account if you are within that range.

GNSS receiver		T101		Steering Wheel
Shapes		Screen Resolution	1024×600	Size	φ 410x32mm
Weight	1.45Kg	Weight	1.5kg	Manual and auto switches	Remote auto steering opening and closing
Dustproof and waterproof	IP67	Operating temperature	-20-70℃	SW
IMU	All systems include multi-stage frequency high-precision positioning board/attitude sensor/digital wireless	Storage temperature	-45-85℃	Function	Sowing, cultivating, making furrows, making ridges, transplanting, leveling, harvesting, spraying
GNSS satellite reception function	BDS B1I/B2I/B3I GPS L1C/A/L2P（Y）/L2C/L5 GLONASS G1/G2 Galileo E1/E5a/E5b QZSS L1/L2/L5	Number of USB ports	1	Minimum speed	0.1km/h
RTK Positioning Mode	Supports digital radio differential signals, cors differential, SBAS, independent positioning	Dustproof and waterproof	IP-65	Maximum speed	20km/h
Standard Format	RTCM3.X	Dustproof and waterproof	IP-65	Maximum speed	20km/h
