NST Navigation

N250

Agricultural Navigation N250

Achieving comfortable work

Cultivation, planting, fertilization, harvesting

Smooth operation
Improved CPU performance and faster CAN communication speeds provide smooth screen movement and comfortable communication speeds, with excellent operation response to support comfortable work.

Bright, easy-to-read LCD screen
The high-brightness LCD screen is equipped with a freely adjustable brightness function and also has a night mode. Visibility during work has been significantly improved. In addition, the color-coded display of the work trajectory has also become easier to distinguish.

Software corruption prevention mechanism
There is a power switch on the tablet body, and if you turn off the power switch before turning off the key to the vehicle, you can prevent software damage.

Equipped with a SIM card slot
You can easily connect to the network by inserting a SIM card. You can also communicate via tethering using a smartphone or pocket Wi-Fi.

Strong waterproof and dustproof performance
Waterproof and dustproof performance is IP65 (completely dustproof and fully water-resistant). It has strong performance to protect the machine from dust and rain so that you can work without worrying about the working environment or weather.

Touch operation just like a smartphone
Uses an electrostatic touch screen that can be operated as easily as a smartphone.

System Configuration

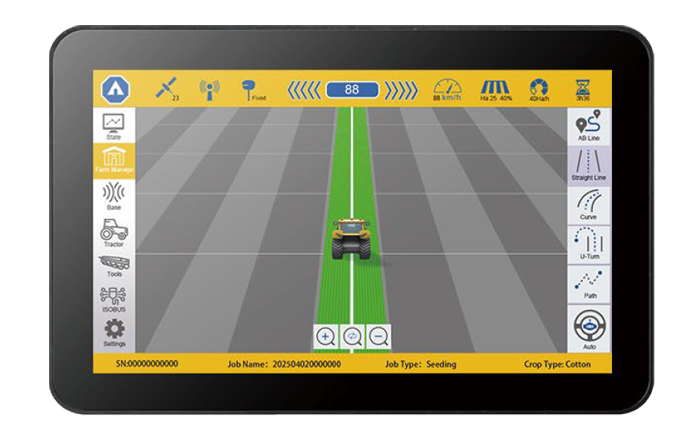

Guidance Tablet

Operating System: Android 9.0
LCD: 10.1’’ Capacitive Touch Screen
Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
Bluetooth: V4.0
Serial Port: RS232 x2, RS485 x1
CAN Port: CANx2 (J1939, CANOpen, ISO15765)
Dustproof & Waterproof: IP-65
Dimension: 281mmx181mmx42mm
Weight: 1.5kg

BDS B1I/B2I/B3I
GPS L1/L2/L5
GLONASS G1/G2
QZSS L1/L2/L5
Galileo E1/E5a/E5b

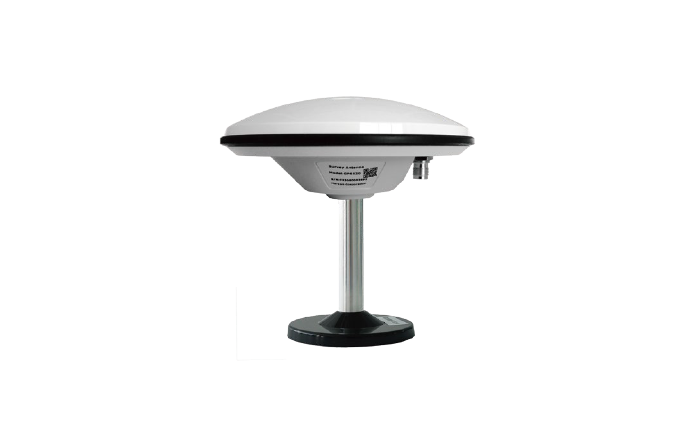

GNSS Antenna

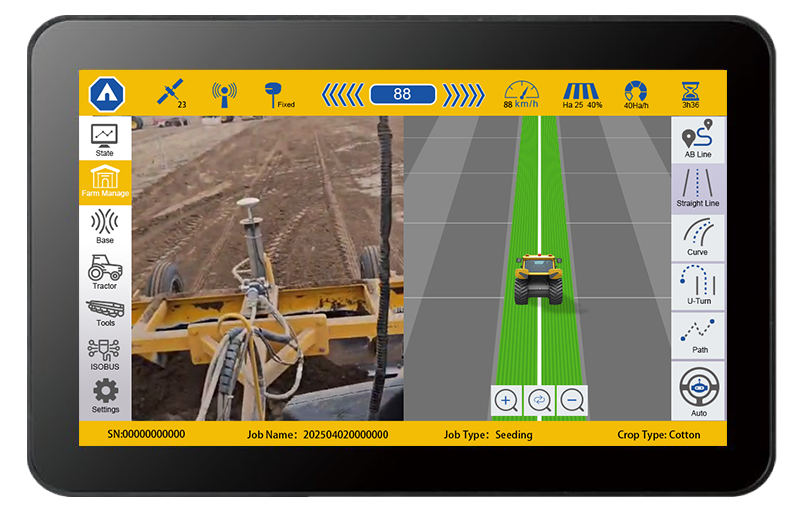

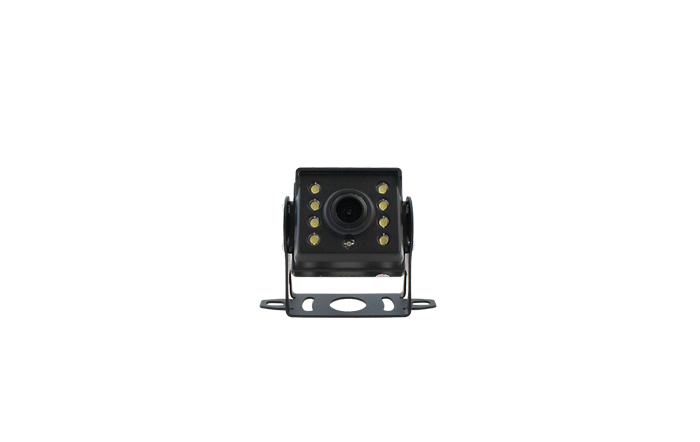

Rear Camera (Optional)

You can check the status of the work afterwards at any time, and it has waterproof and dustproof performance equivalent to IP67.

You can use various apps, including guidance apps! Supports comfortable work. Guidance has an error of about 20 to 60 cm depending on the number of satellites caught in the past, but with the addition of CORS correction, we have achieved navigation with high accuracy of 2.5 cm.

NST Navigation

N250

Agricultural Navigation N250

Cultivation, planting, fertilization, harvesting

System Configuration

Guidance Tablet

Operating System: Android 9.0
LCD: 10.1’’ Capacitive Touch Screen
Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
Bluetooth: V4.0
Serial Port: RS232 x2, RS485 x1
CAN Port: CANx2 (J1939, CANOpen, ISO15765)
Dustproof & Waterproof: IP-65
Dimension: 281mmx181mmx42mm
Weight: 1.5kg

BDS B1I/B2I/B3I
GPS L1/L2/L5
GLONASS G1/G2
QZSS L1/L2/L5
Galileo E1/E5a/E5b

GNSS Antenna

Rear Camera (Optional)

You can check the status of the work afterwards at any time, and it has waterproof and dustproof performance equivalent to IP67.

You can use various apps, including guidance apps! Supports comfortable work. Guidance has an error of about 20 to 60 cm depending on the number of satellites caught in the past, but with the addition of CORS correction, we have achieved navigation with high accuracy of 2.5 cm.

ABC concentric circle guidance

A+ Any Direction Guidance

AB Line Guidance

U-turn guidance
