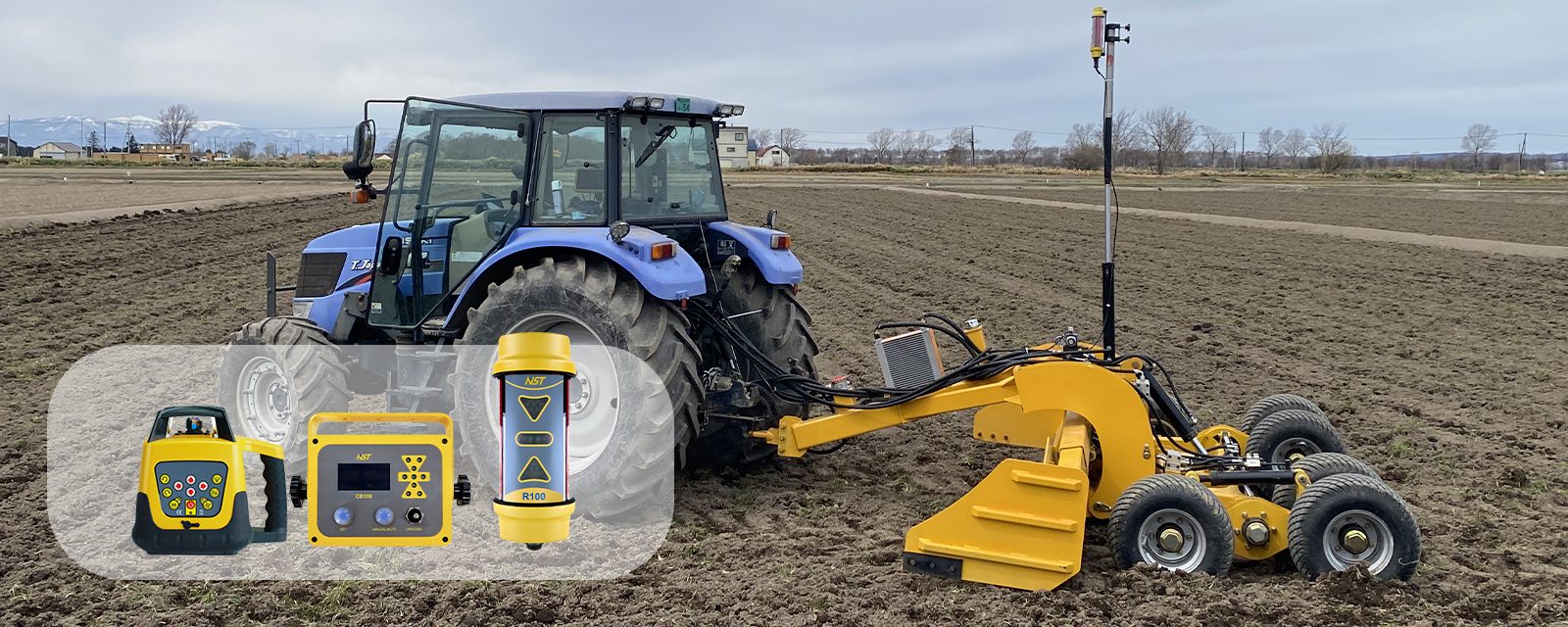

N30 Laser Land Leveling System
The NST® N30 Agricultural Laser Leveling System combines advanced laser technology with automated controls to deliver precise and efficient field leveling. Designed to boost yields, save water, and protect your soil, the N30 ensures consistent performance across all terrains. Its user-friendly interface and durable design make it ideal for farms of all sizes.
Fast Installation
IP 65
Rechargeable Batteries
One-key Benchmark
Laser Signal
Wide Range
Effective working diameter up to 600m.
High Precision
The leveling accuracy can reach ±2 cm, far exceeding the rough leveling effect of traditional machinery.
Irrigation Efficiency
The irrigation efficiency is increased from 40%~50% to 70%~80%.
30%
Land Utilization Rate
Land utilization rate increased by 9%.
9%
Crop Yield
Crop yield increased by 20%~30%
20% ~ 30%
Fertilizer Utilization Rate
Fertilizer utilization rate increased by more than 20%
20%
Automated Operation
Reduce manual dependence, a single person can complete measurement and operation, reducing 80% of measurement costs.
Application
Paddy Field Leveling
Arid Surface Leveling
Reclaim Wasteland
Terraced Fields Leveling
Technical Parameters
NT150-L Control Tablet
Dimension
155 mm * 120 mm * 65 mm
Weight
1.6 kg
Storage Temperature
- 55°C ~ 85°C
Operating Temperature
- 40°C ~ 71°C
Display
2.4" OLED Screen
Interface
Power * 1; Laser Receiver * 1; Control Valve * 1
R100 Laser Receiver
Beam Reception Range
360 °
Vertical Reception Range
200 mm
Display
High-brightness Color LED for status indication
Weight
4 kg
Dimension
410 mm * 350 mm * 200 mm
OperatingTemperature
- 40 °C ~ 70 °C
Storage Temperature
- 55 °C ~ 85 °C
Input Voltage
9 ~ 16 V
Dust & Water Resistance
IP 65
L100 Laser Transmitter
Laser Source
2.5mW Laser Diode
Operating Range (Diameter)
600 m
Self-leveling Accuracy
± 0.05 mm/m
Self-leveling Range
± 5 °
Rotation Speed
600 rpm
Gross Weight
5.5 kg
Dimension
440 mm * 280 mm * 380 mm
Operating Temperature
- 20 °C ~ 70 °C
Storage Temperature
- 20 °C ~ 80 °C
Power Source
NiMH rechargeable battery, continuously work for 10 hours
Dust & Water Resistance
IP 65
Accessories
NT150-L Control Tablet
R100 Laser Receiver
